DAC8560ICDGKTG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 16-Bit Ultra-Low Glitch Volt Out DAC

Download DAC8560ICDGKTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

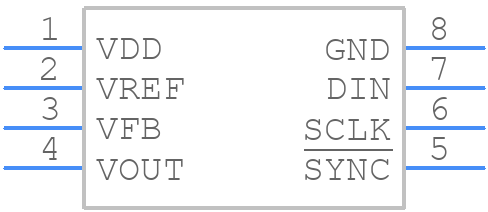

DAC8560ICDGKTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8560ICDGKTG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
DAC8560ICDGKTG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

DAC8560ICDGKTG4 Details

  • Manufacturer Part Number:

    DAC8560ICDGKTG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    2.5005 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0183%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.2 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    8 µs

  • Supply Current-Max:

    0.85 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8560ICDGKTG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital interface signals. This ensures proper device operation and prevents potential latch-up conditions.
  • The DAC8560 has a rail-to-rail output stage, but the output voltage range is limited by the VREF input. Ensure that the output voltage range is within the specified range of VREF to avoid output stage saturation and ensure accurate performance.
  • Clock jitter can affect the DAC8560's performance by introducing noise and distortion in the output signal. It is recommended to use a low-jitter clock source and to follow proper PCB layout and design practices to minimize clock jitter.
  • To implement a bipolar output configuration, connect the output of the DAC8560 to an op-amp configured as an inverting amplifier. This will allow the output voltage to swing both positive and negative with respect to the reference voltage.
  • To minimize digital noise and ensure reliable operation, it is recommended to use a separate ground plane for the digital interface, keep digital signal traces short and away from analog signals, and use series termination resistors to reduce signal reflections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8560ICDGKTG4 Overview

Use the download button to access the DAC8560ICDGKTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC85, or try a keyword search, such as Digital to Analog Converters
