DAC8562FPZ - Analog Devices

Description: DAC8562FPZ, 12 bit-Bit DAC 62.5ksps, Parallel, 20-Pin PDIP

Download DAC8562FPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

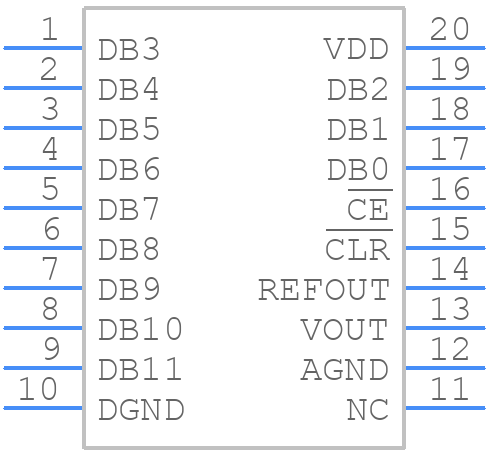

DAC8562FPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DAC8562FPZ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - (N-20)
click to zoom
3D Models
DAC8562FPZ - Analog Devices - 3D model - Dual-In-Line Packages - (N-20)
click to zoom

DAC8562FPZ Details

  • Manufacturer Part Number:

    DAC8562FPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    N-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.095 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    25.2 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Nom (tstl):

    16 µs

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm
