DAC8571IDGKG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - DAC8571IDGKG4 - IC, 16BIT DAC I2C I/F, 8571, VSSOP8

Download DAC8571IDGKG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

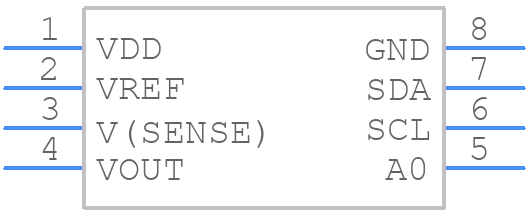

Symbol
DAC8571IDGKG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8571IDGKG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
DAC8571IDGKG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

DAC8571IDGKG4 Details

  • Manufacturer Part Number:

    DAC8571IDGKG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.098%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.043 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    15 µs

  • Settling Time-Nom (tstl):

    10 µs

  • Supply Current-Max:

    0.4 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8571IDGKG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the digital inputs. This ensures that the internal circuitry is properly biased and configured before the digital inputs are applied.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference (VREF) and to decouple the power supply lines with adequate capacitors. Additionally, the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The maximum output current of the DAC8571 is 5 mA. Exceeding this current limit may cause the output voltage to droop or the device to overheat.
  • During power-down or reset, the DAC8571's output is high-impedance, which means it is in a high-impedance state and does not drive the output pin. To avoid any unwanted voltage on the output pin, it is recommended to add a pull-down or pull-up resistor to the output pin to ensure a defined voltage level.
  • The internal 2.5V reference voltage is used as a default reference voltage for the DAC. It can be used as a reference voltage for the DAC, eliminating the need for an external reference voltage. However, an external reference voltage can be used if a different reference voltage is required.
