The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up correctly.
To configure the DAC8771RGZR for bipolar output, connect the VREF pin to a negative voltage reference, and set the UNI/BIP bit in the control register to '1'. This will enable the internal amplifier to output a bipolar signal.
The settling time of the DAC8771RGZR is typically around 10-15 μs, depending on the output range and load conditions. This means that the output voltage may take some time to stabilize after a code change, and system designers should ensure that their system can accommodate this settling time to avoid errors or inaccuracies.
Yes, the DAC8771RGZR can be used with an external voltage reference. The VREF pin can be connected to an external reference voltage, which can provide better accuracy and stability than the internal reference. However, the external reference voltage must be within the specified range of 2.5 V to 5.5 V.
To enter power-down mode, set the PD bit in the control register to '1'. This will reduce the power consumption of the device to a minimum. However, note that the device will take some time to recover from power-down mode, and system designers should ensure that their system can accommodate this recovery time.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8771RGZR Overview

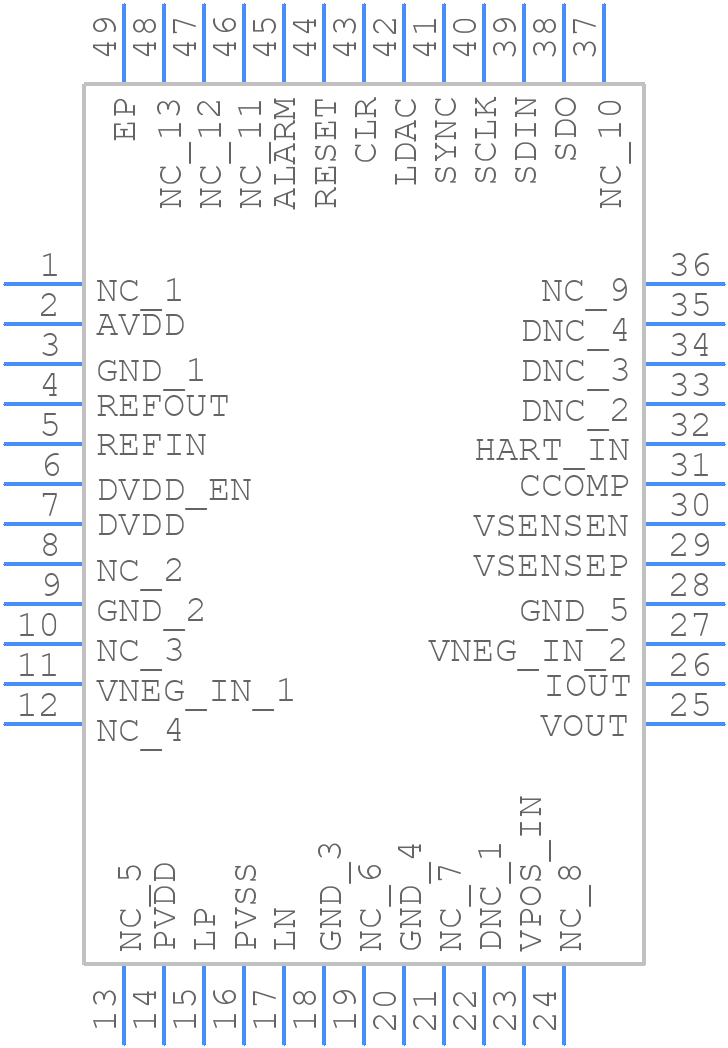

Use the download button to access the DAC8771RGZR schematic symbol, PCB footprint, and 3D model.
