DAC8802IPWRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC Dual Serial Input 14-Bit Multiplying

Download DAC8802IPWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

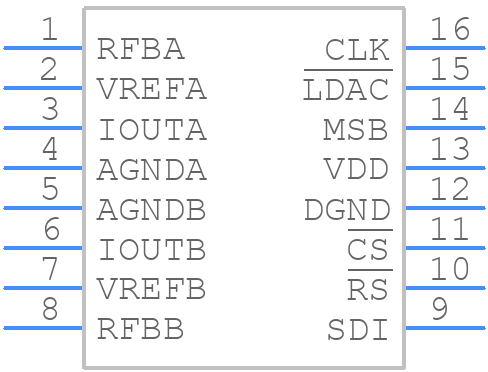

DAC8802IPWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8802IPWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
DAC8802IPWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

DAC8802IPWRG4 Details

  • Manufacturer Part Number:

    DAC8802IPWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Output Voltage-Max:

    10 V

  • Analog Output Voltage-Min:

    -10 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Max:

    0.5 µs

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DAC8802IPWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the DAC8802IPWRG4 evaluation module user's guide (SLAU445). It's essential to follow this guide to minimize noise and ensure optimal performance.
  • To configure the DAC8802IPWRG4 for bipolar output voltage operation, set the VREF pin to a voltage that is twice the desired output voltage range. Then, set the offset pin (VOS) to the desired negative output voltage. Finally, configure the DAC output to swing between VREF and VOS.
  • The maximum output current capability of the DAC8802IPWRG4 is 10 mA. Exceeding this limit can affect the output voltage accuracy and may cause the output voltage to droop or become nonlinear. Ensure that the output current is within the specified limit to maintain optimal performance.
  • To synchronize multiple DAC8802IPWRG4 devices, connect the SYNC pin of each device to a common clock signal. This ensures that all devices update their outputs simultaneously, which is essential in applications requiring coordinated output transitions.
  • The recommended power-up sequence for the DAC8802IPWRG4 is to apply the power supply voltage (VCC) first, followed by the reference voltage (VREF), and finally the digital input signals. This sequence helps prevent output glitches or incorrect operation during power-up.
