Technical Content
Part Image

DAC8803IDBT - Texas Instruments

Description: 14-Bit, Quad Channel, Serial Interface, Multiplying Digital-to-Analog Converter

Download DAC8803IDBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

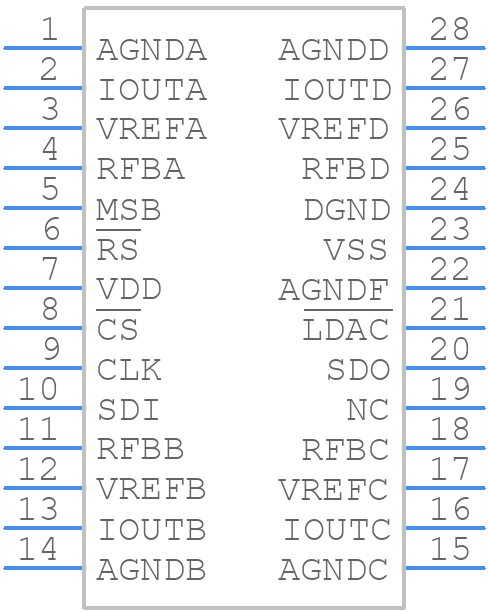

Symbol
DAC8803IDBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8803IDBT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A HEIGHT2
click to zoom
3D Models
DAC8803IDBT - Texas Instruments - 3D model - Small Outline Packages - DB0028A HEIGHT2
click to zoom

DAC8803IDBT Details

  • Manufacturer Part Number:

    DAC8803IDBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Seated Height-Max:

    2 mm

  • Settling Time-Max:

    0.5 µs

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

DAC8803IDBT Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital supply (DVCC). This ensures that the analog and digital sections of the device are powered up correctly.
  • To ensure accurate voltage output, it is essential to use a stable and low-noise voltage reference, and to decouple the analog and digital supplies properly. Additionally, the output voltage should be filtered using a low-pass filter to remove any high-frequency noise.
  • The maximum output current of the DAC8803IDBT is 10 mA. Exceeding this current limit may cause damage to the device or affect its accuracy.
  • The DAC8803IDBT can be interfaced with a microcontroller using a serial interface (SPI or I2C). The microcontroller sends the digital code to the DAC, and the DAC converts it to an analog voltage output. Ensure that the microcontroller and DAC are properly synchronized and that the communication protocol is correctly implemented.
  • The settling time of the DAC8803IDBT is typically around 10 μs, but it can vary depending on the output voltage range and the load capacitance. It is essential to ensure that the DAC has settled to the desired output voltage before taking a measurement or using the output in a system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8803IDBT Overview

Use the download button to access the DAC8803IDBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88, or try a keyword search, such as Digital to Analog Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
