DAC8811ICDGKRG4 - Texas Instruments

Description: Digital to Analog Converters - DAC 16-Bit Serial Input Multiplying DAC

Download DAC8811ICDGKRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

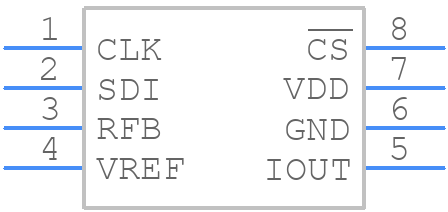

DAC8811ICDGKRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DAC8811ICDGKRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
DAC8811ICDGKRG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

DAC8811ICDGKRG4 Details

  • Manufacturer Part Number:

    DAC8811ICDGKRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    VSSOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2 MHz

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.5 µs

  • Settling Time-Nom (tstl):

    0.5 µs

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DAC8811ICDGKRG4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the digital inputs. This ensures proper device operation and prevents potential latch-up conditions.
  • The DAC8811 has an output voltage range of 0 to VREF. To ensure accurate output voltage, the reference voltage (VREF) should be set to a value that is within the specified range (2.5V to 5.5V) and the output voltage should be buffered with an op-amp if it needs to drive a load.
  • The settling time of the DAC8811 is typically around 10μs to 15μs, depending on the output voltage and load conditions. This is the time it takes for the output voltage to settle within 1 LSB of its final value after a code change.
  • To reduce noise and glitches on the output of the DAC8811, use a low-pass filter, such as an RC filter, to filter out high-frequency noise. Additionally, use a bypass capacitor on the VREF pin to reduce noise and ensure a stable reference voltage.
  • The maximum clock frequency that can be used with the DAC8811 is 50MHz. However, the actual clock frequency used should be determined by the specific application requirements and the settling time of the DAC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DAC8811ICDGKRG4 Overview

Use the download button to access the DAC8811ICDGKRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88, or try a keyword search, such as Digital to Analog Converters
