The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly.
To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference, and to decouple the AVCC pin with a 10uF capacitor. Additionally, the output voltage should be buffered with an op-amp to prevent loading effects.
The DAC8830 can handle clock frequencies up to 50 MHz. However, it is recommended to limit the clock frequency to 20 MHz or less to ensure reliable operation and to prevent clock jitter from affecting the DAC's performance.
During power-down or reset, the DAC8830's output will be in a high-impedance state. To prevent unwanted voltage levels, it is recommended to use an external pull-down resistor or a buffer amplifier to maintain a stable output voltage.
To minimize noise and ensure reliable operation, it is recommended to keep the analog and digital signal paths separate, use a solid ground plane, and keep the power supply lines away from the analog output. Additionally, use short, direct traces for the clock and data lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8830MCDEP Overview

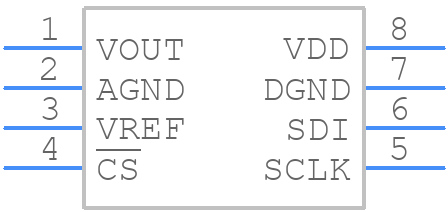

Use the download button to access the DAC8830MCDEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
