The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
To ensure accurate voltage output, it is essential to use a low-noise, low-impedance voltage reference, and to decouple the power supplies (VCC and AVCC) with 10uF capacitors. Additionally, use a stable clock signal and ensure the digital inputs are properly terminated.
The DAC8831IDR supports clock frequencies up to 40 MHz. However, the maximum clock frequency may vary depending on the specific application and system constraints.
To enter power-down mode, assert the PD pin low. In power-down mode, the device consumes minimal power, and the output voltage is undefined. When exiting power-down mode, ensure the PD pin is de-asserted before applying a new input code to the DAC.
To minimize noise and ensure optimal performance, it is recommended to keep the analog and digital signal paths separate, use a solid ground plane, and keep the power supply decoupling capacitors close to the device. Additionally, use a low-inductance path for the output voltage and keep the output traces short and direct.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DAC8831IDR Overview

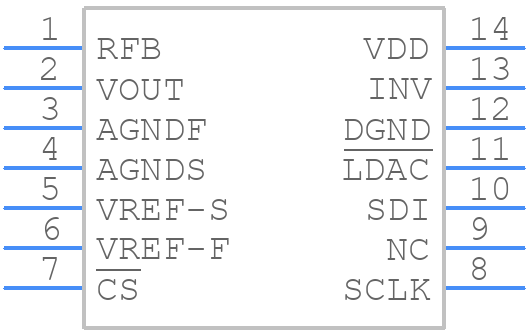

Use the download button to access the DAC8831IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DAC88,
or try a keyword search, such as Digital to Analog Converters
