Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DAMM-15P-D-K87
- Part Number DAMM-15P-D-K87
- Manufacturer ITT CANNON
- Pin Count 17
- Part Category Connector
- Package Category Other

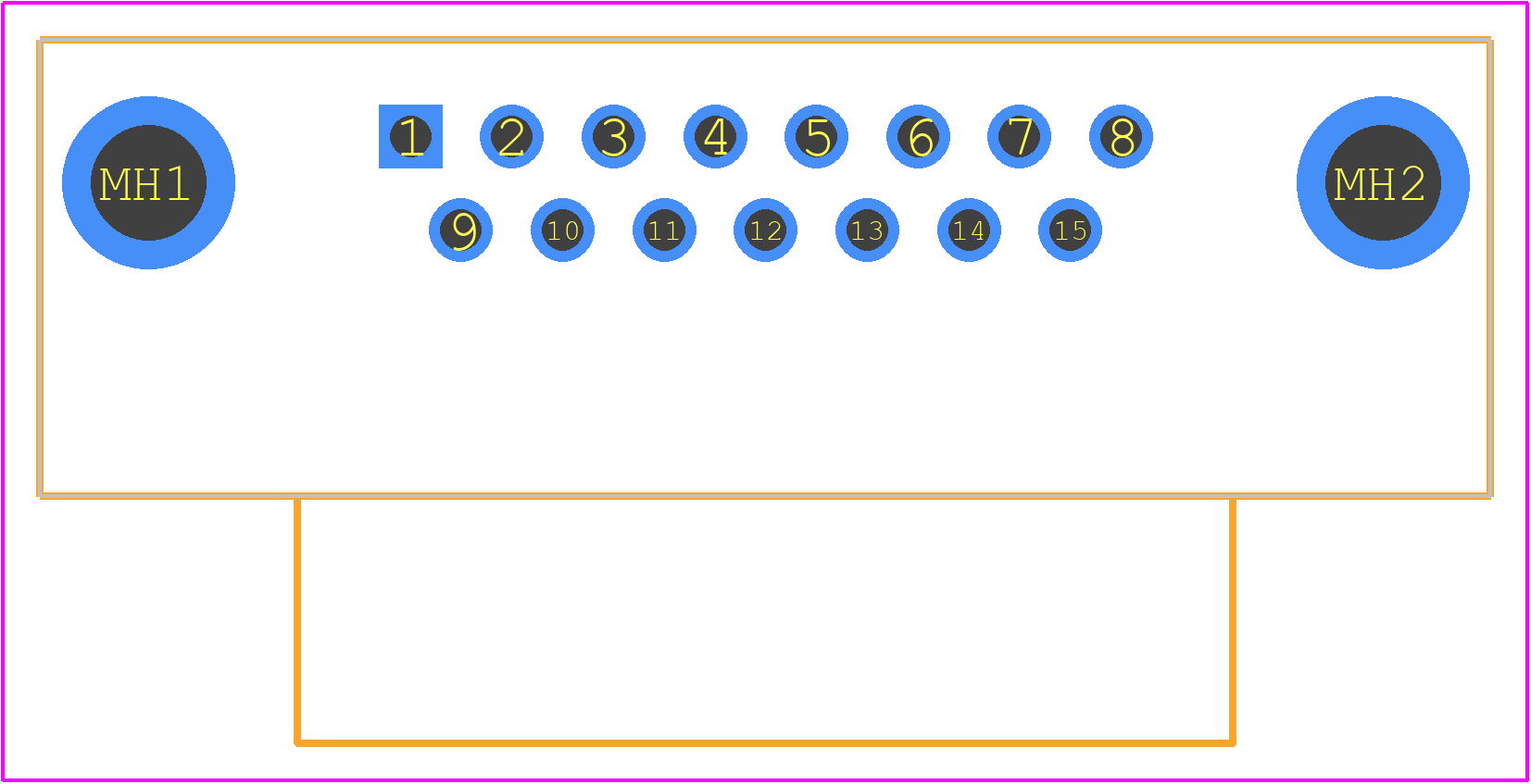

- Footprint Name Other - DAMM-15P-D-K87-2
- Released Date Aug 21, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DAMM-15P-D-K87 Details
-
Manufacturer Part Number:
DAMM-15P-D-K87
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
23 Weeks
-
Manufacturer:
ITT Interconnect Solutions
-
Connector Type:
D SUBMINIATURE CONNECTOR
Trust Checks
Expert Contribution
System Verified
Community Approved
DAMM-15P-D-K87 Overview
Use the download button to access the DAMM-15P-D-K87 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DAMM-,
or try a keyword search, such as D Type Connectors
