DAMMN3H3SN - ITT CANNON

Description: D-SUB COMB CONNECTOR, RCPT, DA-3W3

Download DAMMN3H3SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DAMMN3H3SN - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

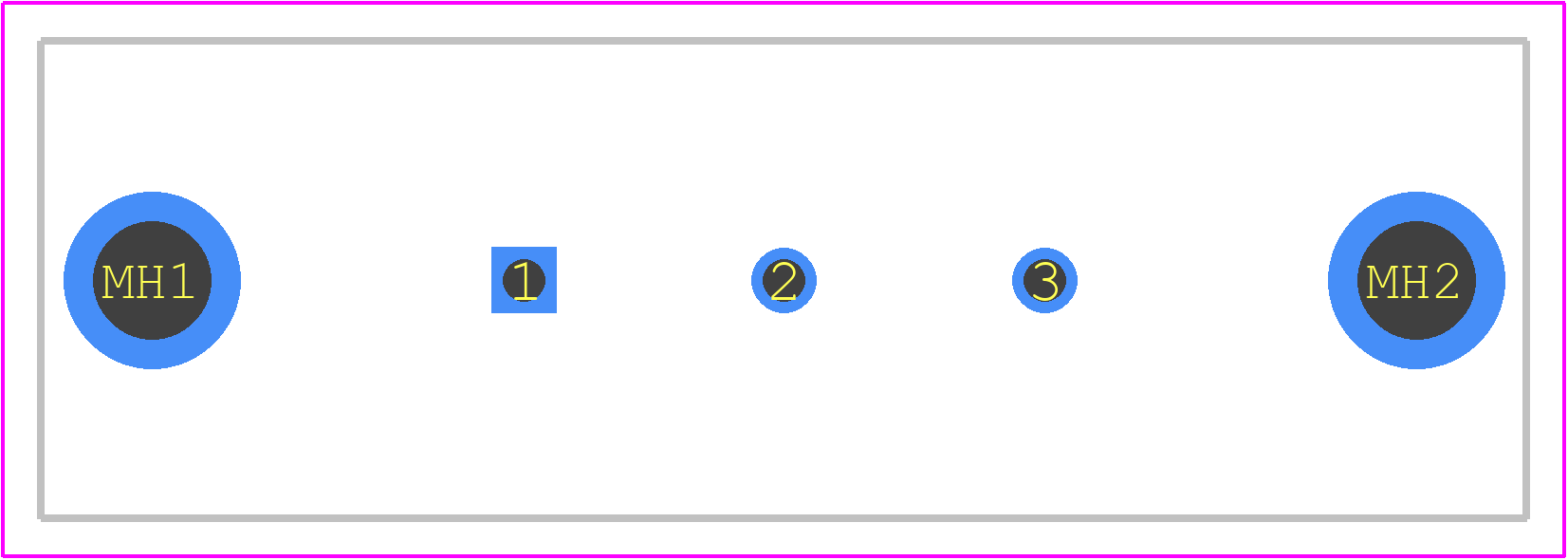

DAMMN3H3SN - ITT CANNON PCB footprint - Other - Other - DAMMN3H3SN-9
click to zoom
3D Models
DAMMN3H3SN - ITT CANNON - 3D model - Other - DAMMN3H3SN-9
click to zoom

DAMMN3H3SN Details

  • Manufacturer Part Number:

    DAMMN3H3SN

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-C-24308, PANEL MOUNT

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYESTER

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    CHROMATE

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

  • UL Flammability Code:

    94V-0

DAMMN3H3SN Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the DAMMN-3H3S-N connector. However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
  • Yes, the DAMMN-3H3S-N connector is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-38999, which includes vibration testing. However, it's crucial to ensure proper installation, mating, and securing of the connector to maintain its performance.
  • The DAMMN-3H3S-N connector is designed to operate in a wide range of temperatures (-65°C to 200°C) and can withstand exposure to various chemicals. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental requirements and any necessary precautions.
  • The DAMMN-3H3S-N connector is designed for high-reliability applications, but it's not specifically optimized for high-speed data transmission. For high-speed applications, it's recommended to consult the manufacturer's guidelines and consider using connectors specifically designed for high-speed data transmission.
  • The typical lead time for DAMMN-3H3S-N connectors can vary depending on the supplier, quantity, and specific configuration. It's recommended to consult with the manufacturer or authorized distributor for the most up-to-date lead time information.
