DAMP15SJA197 - ITT CANNON

Description: 15 Position D-Sub Receptacle, Female Sockets Connector

Download DAMP15SJA197 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

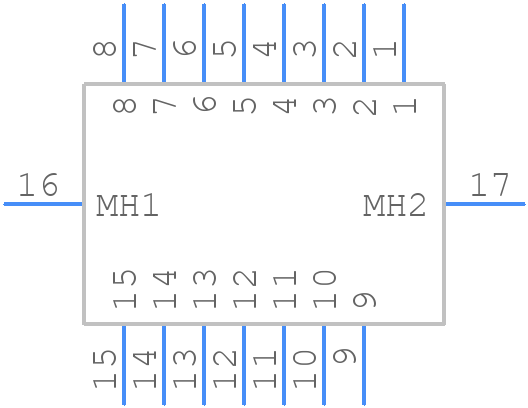

Symbol
DAMP15SJA197 - ITT CANNON - PCB symbol
click to zoom

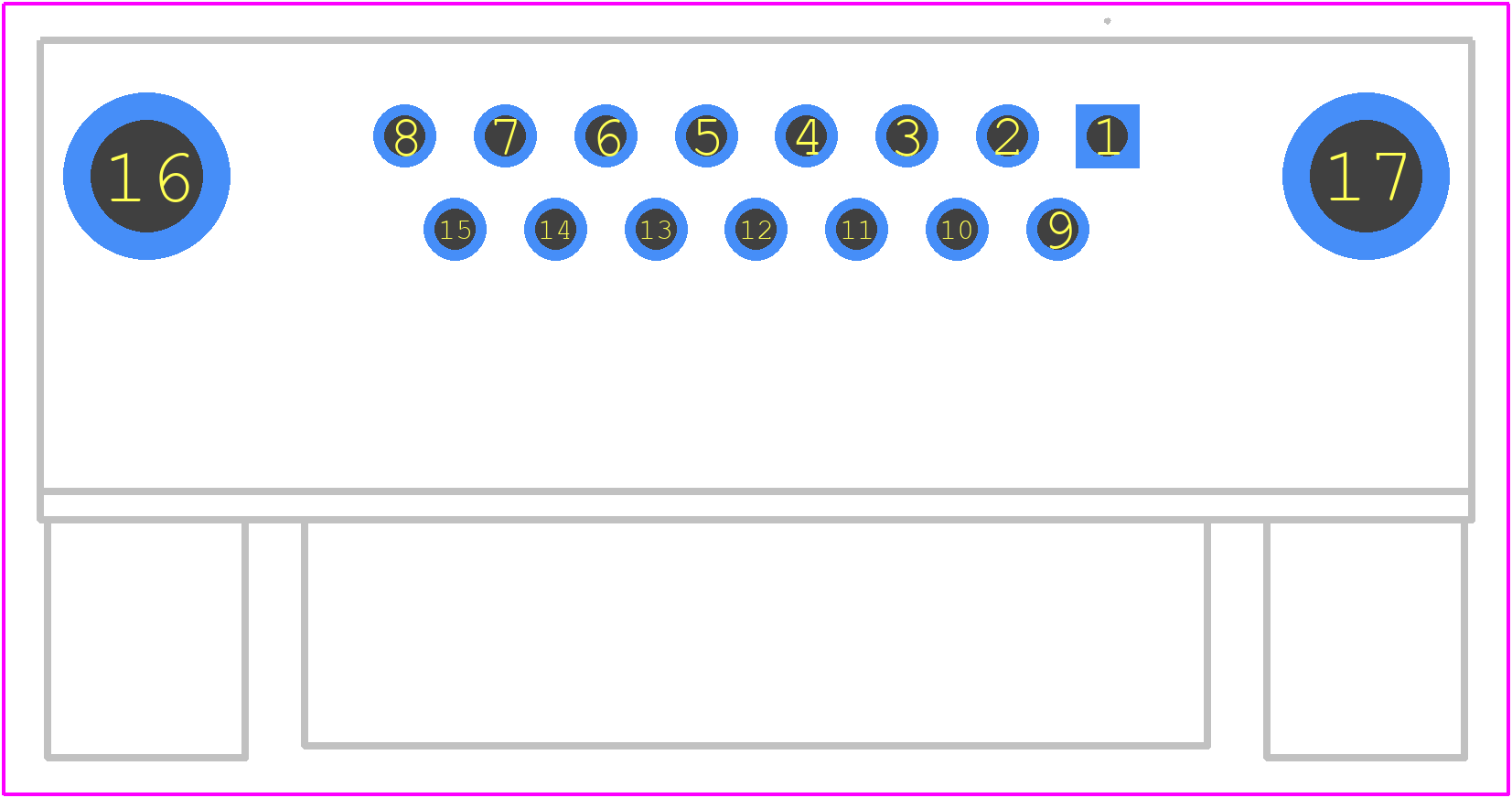

PCB Footprints
DAMP15SJA197 - ITT CANNON PCB footprint - Other - Other - DAMP15SJA197-2
click to zoom

DAMP15SJA197 Details

  • Manufacturer Part Number:

    DAMP15SJA197

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.18

  • Additional Feature:

    PANEL MOUNT

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

DAMP15SJA197 Frequently Asked Questions (FAQs)

  • The operating temperature range of the DAMP-15S-J-A197 connector is -55°C to 125°C.
  • Yes, the DAMP-15S-J-A197 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • The DAMP-15S-J-A197 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
  • Yes, the DAMP-15S-J-A197 connector is designed to operate in harsh environments, including exposure to moisture, salt spray, and other corrosive substances.
  • The typical lead time for delivery of the DAMP-15S-J-A197 connector varies depending on the quantity and availability, but it is usually around 8-12 weeks.
