DB25SL25 - Adam Tech

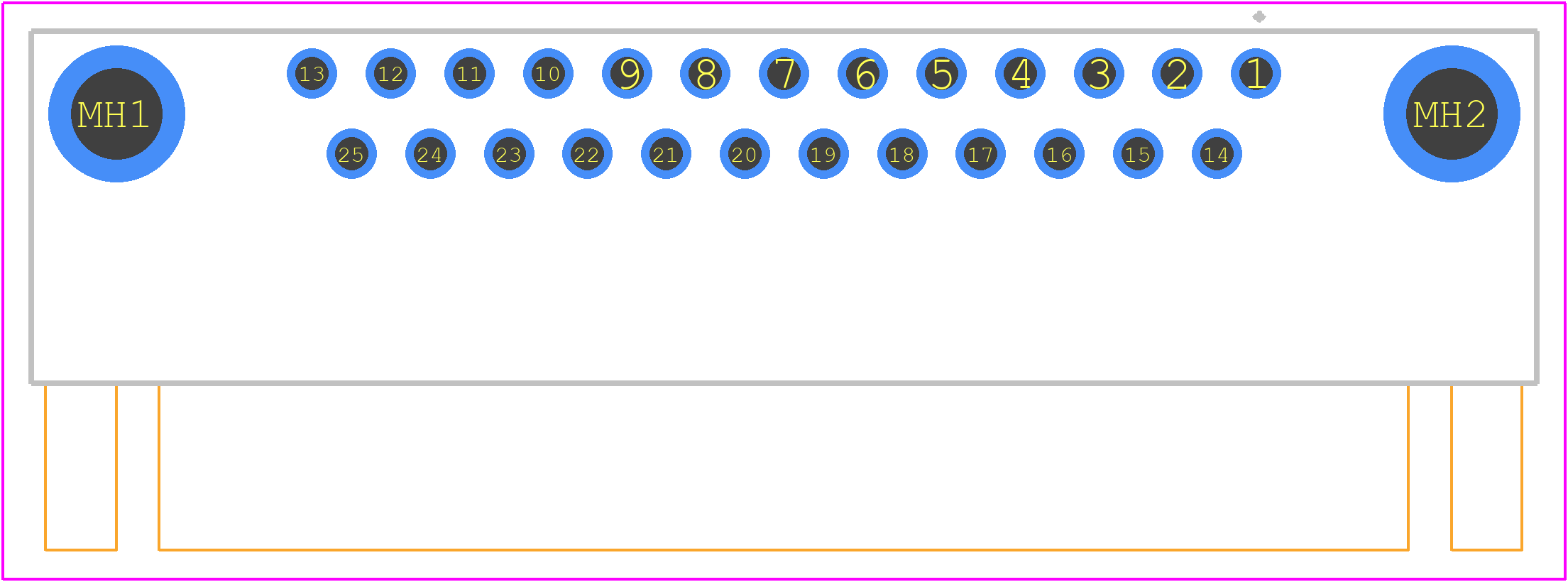

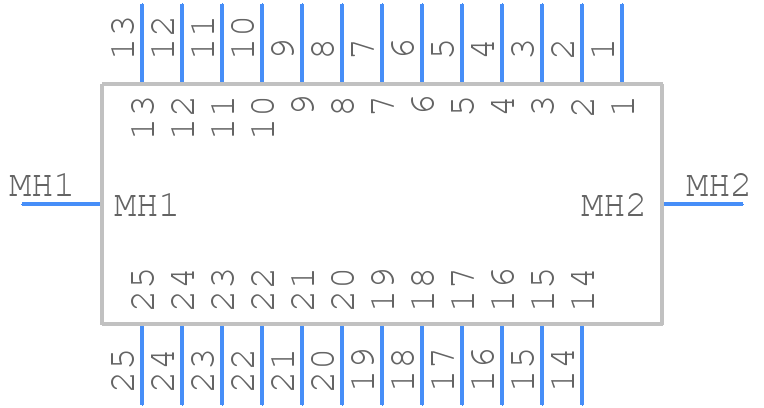

DB25SL25 Details

• Manufacturer Part Number:

  DB25SL25

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Adam Technologies Inc

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.494 inch

• Body Depth:

  0.488 inch

• Body Length:

  2.088 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  20 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  JACKSCREW

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL, CSA

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.7686 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25
