Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
Proper thermal management is crucial for the DB6X314K0R. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to keep the junction temperature below the recommended maximum of 150°C.
The derating curve is not explicitly provided in the datasheet, but it can be obtained from Panasonic's support team or application engineers. The derating curve shows the reduction in voltage and current ratings as the ambient temperature increases, ensuring safe operation within the specified temperature range.
While the DB6X314K0R is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic provides guidelines for vibration and shock testing, and it's recommended to consult with their application engineers for specific guidance.
Panasonic recommends following the J-STD-020D.1 standard for soldering conditions, which includes a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering iron temperature of 350°C maximum.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DB6X314K0R Overview

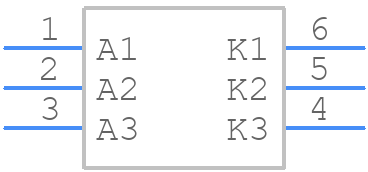

Use the download button to access the DB6X314K0R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DB6X3,
or try a keyword search, such as Microwave Mixer Diodes
