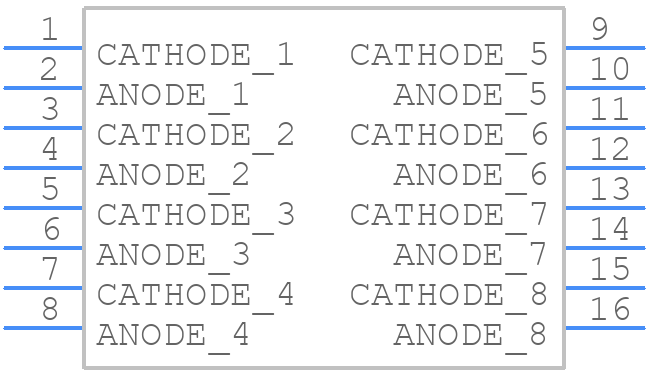

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DBI04333
- Part Number DBI04333
- Manufacturer Signal Construct
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other

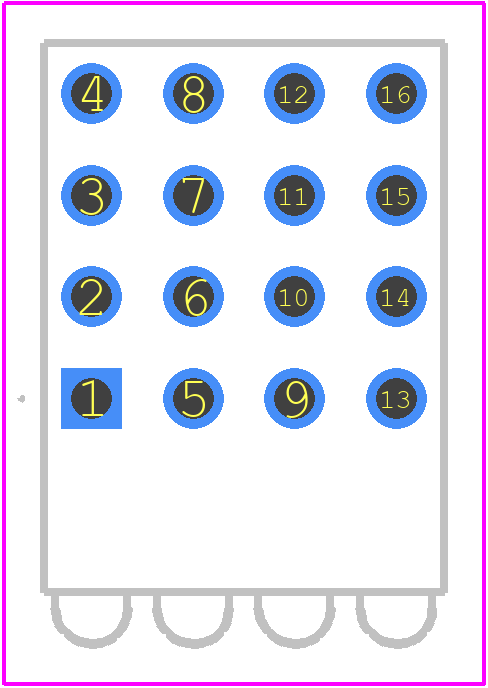

- Footprint Name Other - DBI04333-9
- Released Date Sep 30, 2021
- Last Modified Date Jan 22, 2024 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
DBI04333 Details
-
Manufacturer Part Number:
DBI04333
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Signal Construct Gmbh
-
YTEOL:
6.95
-
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Trust Checks
Community Provided
System Verified
Community Approved
DBI04333 Overview
Use the download button to access the DBI04333 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DBI04,
or try a keyword search, such as Visible LEDs
