DBMM25PE - ITT CANNON

DBMM25PE Details

• Manufacturer Part Number:

  DBMM25PE

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  ITT Interconnect Solutions

• YTEOL:

  8.5

• Additional Feature:

  STANDARD: MIL-C-24308, PANEL MOUNTABLE

• Body Breadth:

  0.494 inch

• Body Depth:

  0.196 inch

• Body Length:

  2.08 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  GOLD OVER NICKEL

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1250VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  GREEN

• Insulator Material:

  GLASS FILLED DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• MIL Conformance:

  YES

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .12

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

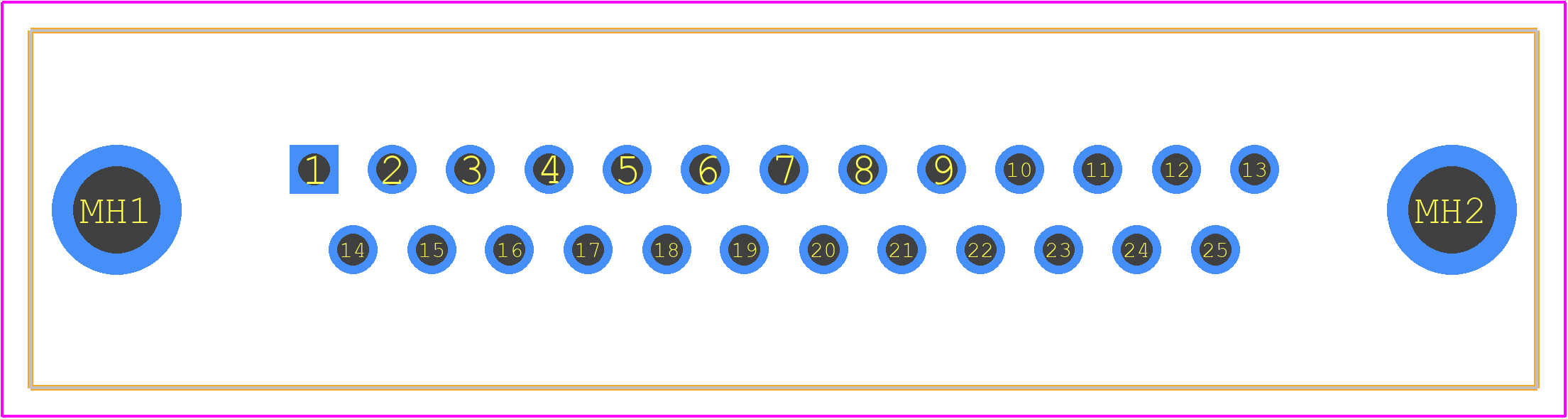

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  7.5 A

• Reference Standard:

  UL

• Shell Finish:

  CHROMATE

• Shell Material:

  STEEL

• Shell Size:

  3/B

• Terminal Length:

  0.127 inch

• Terminal Pitch:

  2.794 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0
