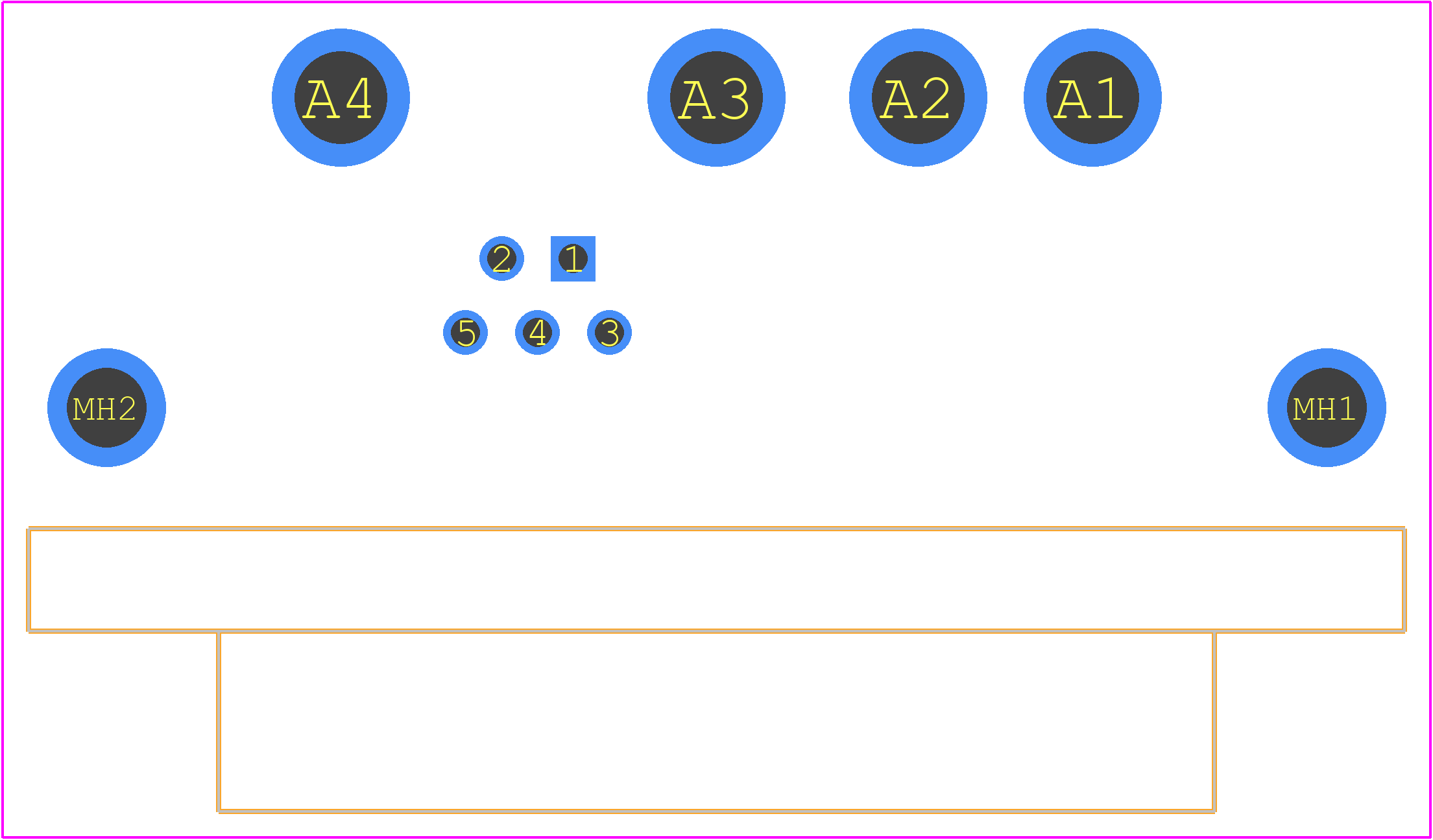

DBMP-9H4S-J-A197 - ITT CANNON

DBMP-9H4S-J-A197 Details

• Manufacturer Part Number:

  DBMP-9H4S-J-A197

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  32 Weeks

• Manufacturer:

  ITT Interconnect Solutions

• YTEOL:

  8.5

• Additional Feature:

  COMPATIBLE CONTACT: DM53744-92, EMI/RFI SHIELDED, PANEL MOUNT

• Body Breadth:

  0.494 inch

• Body Depth:

  1.127 inch

• Body Length:

  2.087 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Arrangement:

  S5C4

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Resistance:

  7.5 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  POLYESTER

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  YES

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  CLINCH NUT

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  3/B

• Terminal Length:

  0.153 inch

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0
