DBTC-20-4L+ - Mini-Circuits

Description: Surface Mount Directional Couplers

Download DBTC-20-4L+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

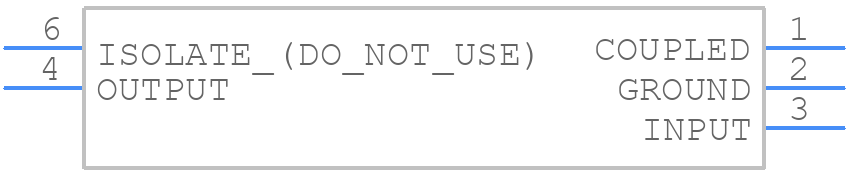

Symbol
DBTC-20-4L+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
DBTC-20-4L+ - Mini-Circuits PCB footprint - Other - Other - DBTC-20-4L+-2
click to zoom
3D Models
DBTC-20-4L+ - Mini-Circuits - 3D model - Other - DBTC-20-4L+-2
click to zoom

DBTC-20-4L+ Details

  • Manufacturer Part Number:

    DBTC-20-4L+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, MICRO-MINIATURE, CASE AT1030, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.3

  • Characteristic Impedance:

    50 Ω

  • Construction:

    MODULE

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.3 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.6

DBTC-20-4L+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize signal degradation.
  • The DBTC-20-4L+ has a maximum junction temperature of 125°C. To ensure reliable operation, it's crucial to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component.
  • The DBTC-20-4L+ has a maximum power handling capability of 1W. Exceeding this power rating can lead to component damage or failure. It's essential to ensure that the input power is within the specified limits to maintain reliability and performance.
  • Common issues with the DBTC-20-4L+ can be troubleshooted by checking the input and output signal levels, ensuring proper termination, and verifying the PCB layout and assembly. Additionally, Mini-Circuits provides application notes and technical support resources to help troubleshoot and resolve issues.
  • Yes, the DBTC-20-4L+ is compatible with lead-free soldering processes. Mini-Circuits ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, making them suitable for use in lead-free soldering applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DBTC-20-4L+ Overview

Use the download button to access the DBTC-20-4L+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DBTC-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
