- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DC-05GWA
- Part Number DC-05GWA
- Manufacturer Kingbright
- Pin Count 10
- Part Category Inductor
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - DC-05GWA
- Released Date Mar 7, 2021
- Last Modified Date May 9, 2023 10:03 AM UTC
- Pinout / Pin List Click Here (Member Only)
DC-05GWA Details
-
Manufacturer Part Number:
DC-05GWA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
6.95
-
Color@Wavelength:
Green
-
Forward Voltage-Max:
2.5 V
-
Luminous Intensity-Min:
0.0014 cd
-
Number of LEDs in Array:
5
DC-05GWA Frequently Asked Questions (FAQs)
-
The recommended storage temperature range for the DC-05GWA is -30°C to 60°C.
-
Yes, the DC-05GWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure to protect it from environmental factors such as moisture and UV radiation.
-
The maximum forward current that can be applied to the DC-05GWA is 30mA. Exceeding this current may reduce the lifespan of the LED or cause it to fail prematurely.
-
Yes, the DC-05GWA is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
-
The typical viewing angle of the DC-05GWA is 120°, which means the LED remains visible from the side up to an angle of 60° from the center.
Trust Checks
Community Provided
System Verified
Community Approved
DC-05GWA Overview

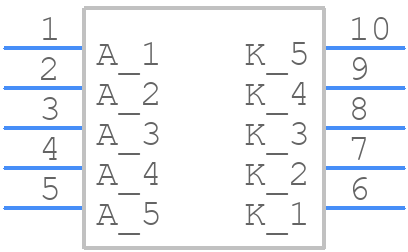

Use the download button to access the DC-05GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC-05,
or try a keyword search, such as Visible LEDs
