Part Image

DC-10SGWA - Kingbright

Description: Kingbright DC-10SGWA Light Bar LED Display, Green 21 mcd

Download DC-10SGWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

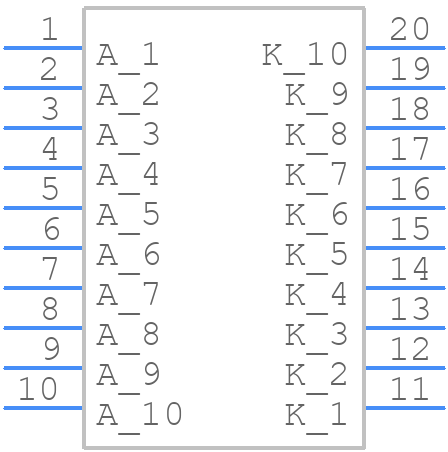

DC-10SGWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

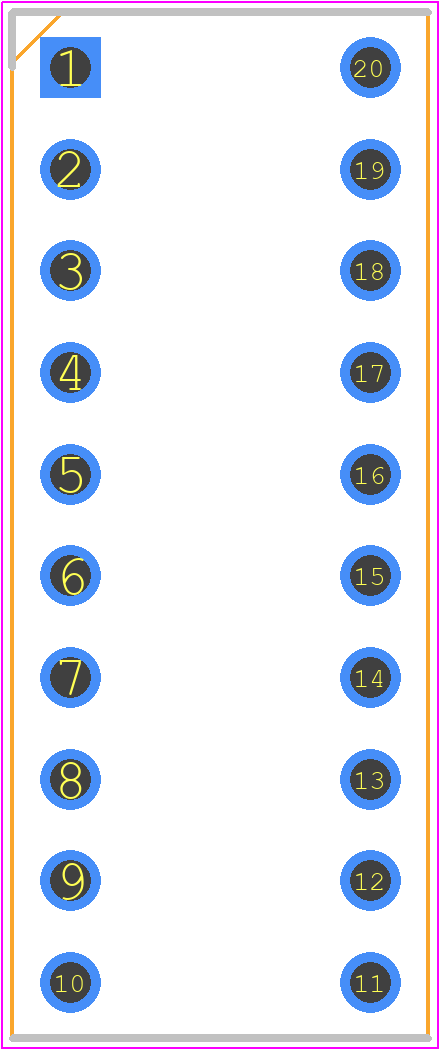

DC-10SGWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10 SEGMENT BAR GRAPH ARRAY
click to zoom

DC-10SGWA Details

  • Manufacturer Part Number:

    DC-10SGWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6.95

  • Color:

    SUPER GREEN

  • Configuration:

    SEPARATE, 10 ELEMENTS

  • Forward Current-Max:

    0.025 A

  • Luminous Intensity-Nom:

    13300 mcd

  • Number of Functions:

    10

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Packing Method:

    BULK

  • Peak Wavelength:

    565 nm

  • Shape:

    RECTANGULAR

  • Size:

    5.08 mm

  • Terminal Pitch:

    2.54 mm

DC-10SGWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DC-10SGWA is -40°C to 100°C, as per the manufacturer's guidelines.
  • Yes, the DC-10SGWA is suitable for outdoor applications due to its IP67 rating, which provides protection against dust and water ingress.
  • The typical forward voltage drop of the DC-10SGWA is around 2.0-2.5V, depending on the operating current and temperature.
  • Yes, the DC-10SGWA is compatible with dimming circuits, but the manufacturer recommends using a dedicated dimming IC or a PWM signal with a frequency above 100Hz to ensure stable operation.
  • The maximum allowable current surge for the DC-10SGWA is 10 times the rated current for a duration of 10ms, as per the manufacturer's guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC-10SGWA Overview

Use the download button to access the DC-10SGWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DC-10, or try a keyword search, such as Visible LEDs
