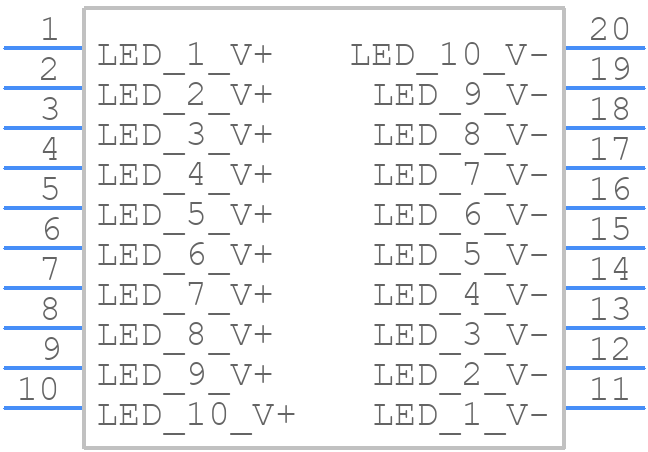

Symbol

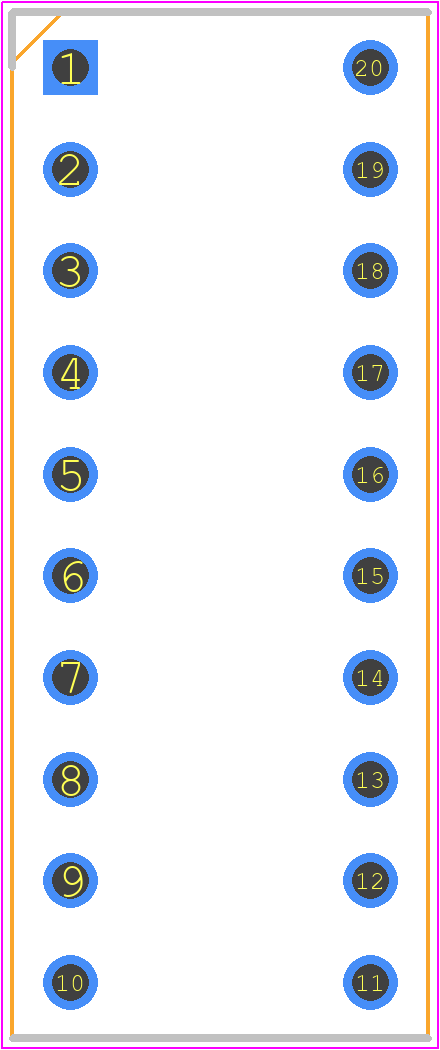

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DC-7G3EWA
- Part Number DC-7G3EWA
- Manufacturer Kingbright
- Pin Count 20
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - mcd
- Released Date Feb 27, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DC-7G3EWA Details
-
Manufacturer Part Number:
DC-7G3EWA
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Kingbright
-
YTEOL:
6.25
-
Color:
SUPER RED/GREEN
-
Configuration:
SEPARATE, 10 ELEMENTS
-
Forward Current-Max:
0.03 A
DC-7G3EWA Frequently Asked Questions (FAQs)
-
The recommended storage temperature for DC-7G3EWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
-
Yes, DC-7G3EWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
-
The maximum soldering temperature for DC-7G3EWA is 260°C (500°F) for 3 seconds. Exceeding this temperature can damage the LED.
-
Yes, DC-7G3EWA is compatible with lead-free soldering, but it's crucial to follow the recommended soldering profile to prevent damage.
-
The typical lifespan of DC-7G3EWA is around 50,000 hours, but this can vary depending on operating conditions, such as temperature, current, and environmental factors.
Trust Checks
Expert Contribution
System Verified
Community Approved
DC-7G3EWA Overview
Use the download button to access the DC-7G3EWA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DC-7G,
or try a keyword search, such as Visible LEDs
