The recommended storage temperature for DC10GWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
While DC10GWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from moisture and extreme temperatures. However, it's recommended to use a suitable enclosure and follow proper sealing and potting techniques to ensure reliability.
The maximum forward current for DC10GWA is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
To prevent electrostatic discharge (ESD) damage, handle DC10GWA with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the LED pins or handling the device in environments with high static electricity.
While DC10GWA is rated for operation up to 85°C (185°F), it's recommended to derate the current and voltage at higher temperatures to ensure reliability. Consult the datasheet and Kingbright's application notes for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DC10GWA Overview

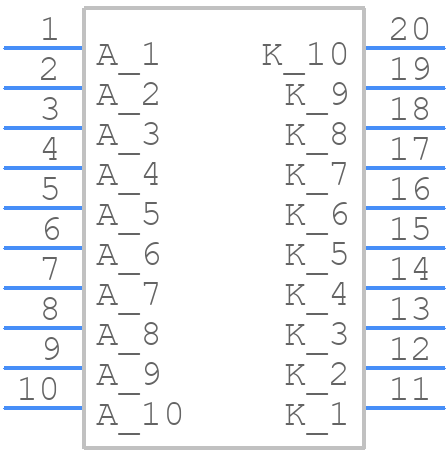

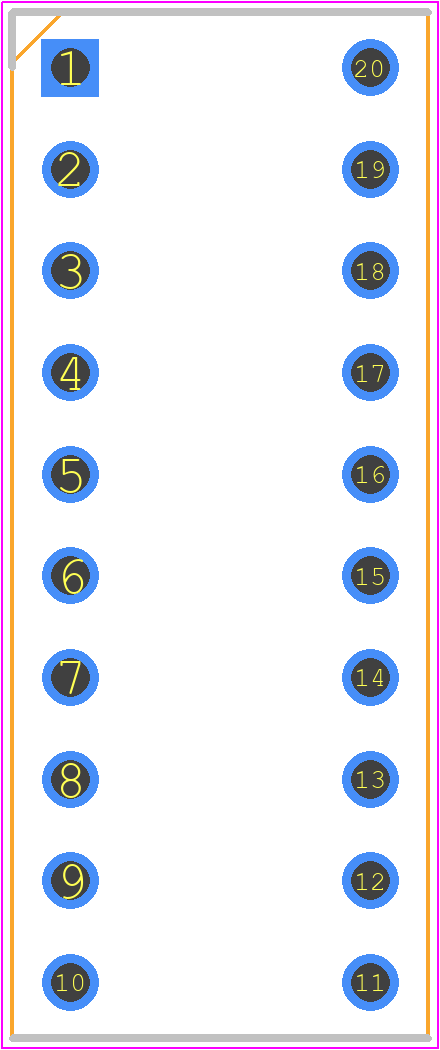

Use the download button to access the DC10GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC10G,
or try a keyword search, such as Visible LEDs
