DC10SURKWA - Kingbright

Description: LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Red (x 10) Diffused, White 1.95V 185mA Rectangle with Flat Top 5.08mm x 1.78mm Through Hole

Download DC10SURKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DC10SURKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

DC10SURKWA - Kingbright - PCB symbol

PCB Footprints

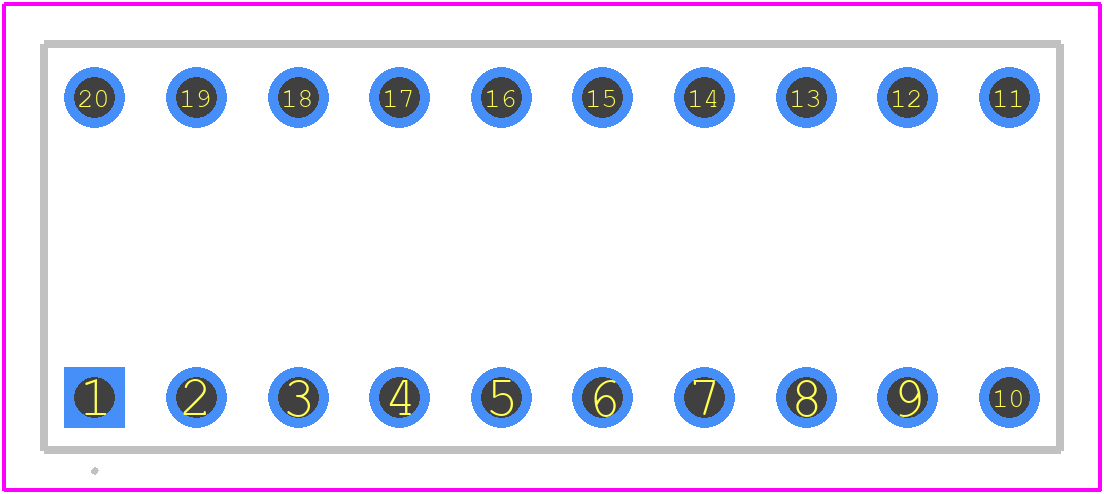

DC10SURKWA - Kingbright PCB footprint - Other - Other - DC10SURKWA-2

3D Models

DC10SURKWA - Kingbright - 3D model - Other - DC10SURKWA-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for DC10SURKWA
Part Number DC10SURKWA
Manufacturer Kingbright
Pin Count 20
Part Category Display
Package Category Other
Footprint Name Other - DC10SURKWA-2
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 12:34 PM UTC
Pinout / Pin List Click Here (Member Only)

DC10SURKWA Details

Manufacturer Part Number:
DC10SURKWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-20
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
7
Color:
HYPER RED
Configuration:
SEPARATE, 10 ELEMENTS
Forward Current-Max:
0.03 A
Lens Type:
DIFFUSED WHITE
Mounting Feature:
RADIAL MOUNT
Number of Functions:
10
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Overall Height:
8 mm
Packing Method:
BOX
Peak Wavelength:
650 nm
Shape:
RECTANGULAR
Size:
5.08 mm
Surface Mount:
NO
Terminal Pitch:
7.5 mm

DC10SURKWA Frequently Asked Questions (FAQs)

The recommended storage temperature range for the DC10SURKWA is -30°C to 60°C.
Yes, the DC10SURKWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV degradation.
The maximum forward current rating for the DC10SURKWA is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
Yes, the DC10SURKWA is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
The typical luminous intensity of the DC10SURKWA is 10,000 mcd (millicandelas) at a viewing angle of 30°.
