DC10SYKWA - Kingbright

Description: LED Bars & Arrays 10 SEGMENT YEL BAR GRAPH LED DISPLAY

Download DC10SYKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DC10SYKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

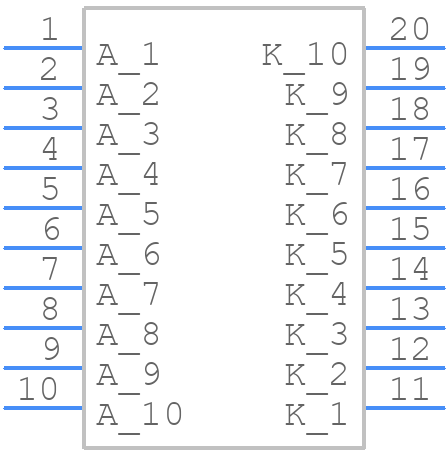

DC10SYKWA - Kingbright - PCB symbol

PCB Footprints

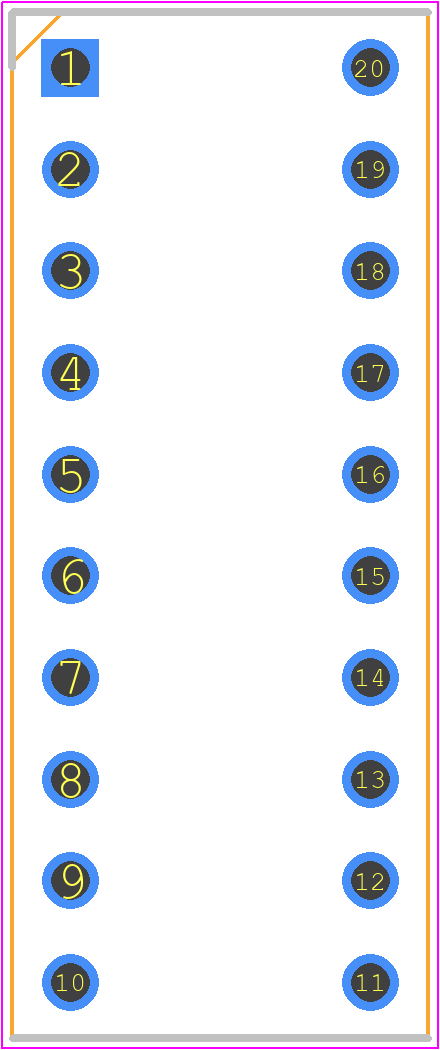

DC10SYKWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DC10SYKWA-9

3D Models

DC10SYKWA - Kingbright - 3D model - Dual-In-Line Sockets - DC10SYKWA-9

Datasheet Download Datasheet
Stock & Prices Price & Stock for DC10SYKWA
Part Number DC10SYKWA
Manufacturer Kingbright
Pin Count 20
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - DC10SYKWA-9
Released Date Dec 12, 2023
Last Modified Date Sep 19, 2024 1:48 PM UTC
Pinout / Pin List Click Here (Member Only)

DC10SYKWA Details

Manufacturer Part Number:
DC10SYKWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-20
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Color:
SUPER BRIGHT YELLOW
Configuration:
SEPARATE, 10 ELEMENTS
Forward Current-Max:
0.03 A
Lens Type:
DIFFUSED WHITE
Mounting Feature:
RADIAL MOUNT
Number of Functions:
10
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
SINGLE COLOR LED ARRAY
Overall Height:
8 mm
Packing Method:
BOX
Peak Wavelength:
590 nm
Shape:
RECTANGULAR
Size:
5.08 mm
Surface Mount:
NO
Terminal Pitch:
7.5 mm

DC10SYKWA Frequently Asked Questions (FAQs)

The recommended storage temperature range for DC10SYKWA is -40°C to 100°C.
Yes, DC10SYKWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors like moisture and UV.
The typical forward voltage drop for DC10SYKWA is around 2.0-2.5V, but it can vary depending on the operating current and temperature.
Yes, DC10SYKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The maximum allowable reverse voltage for DC10SYKWA is 5V, and exceeding this value may damage the device.
