DC21.0021.1111 - SCHURTER

Description: CAD-Model shows variation protection class I, 4 holes for screws M3, 2-pole rocker switch non-illuminated, with cover, terminal 4.8 mm

Download DC21.0021.1111 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DC21.0021.1111 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

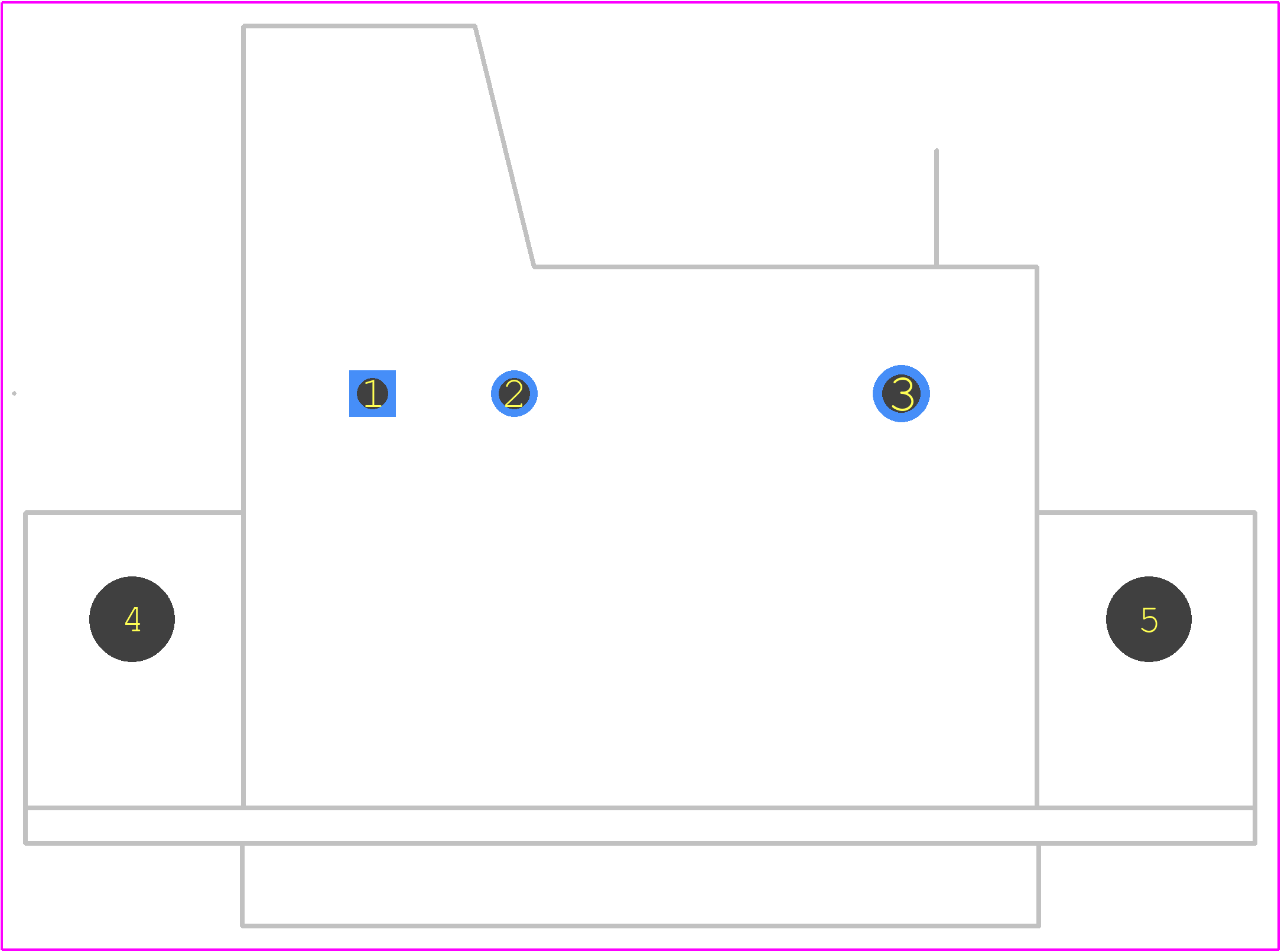

DC21.0021.1111 - SCHURTER PCB footprint - Other - Other - DC21.0021.1111-3
click to zoom
3D Models
DC21.0021.1111 - SCHURTER - 3D model - Other - DC21.0021.1111-3
click to zoom

DC21.0021.1111 Details

  • Manufacturer Part Number:

    DC21.0021.1111

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8.3

  • Additional Feature:

    STANDARDS: CUL, IEC 60320-1, IEC 61058-1, UL, VDE

  • Body Breadth:

    1.25 inch

  • Body Depth:

    1.5 inch

  • Body Length:

    2.04 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CCC; CSA

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

DC21.0021.1111 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the DC21.0021.1111 is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure fastening to prevent damage or dislodging of the component.
  • Yes, the DC21.0021.1111 is compatible with lead-free soldering processes. Schurter Electronic Components ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The DC21.0021.1111 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the component is operated within this range to maintain its performance and reliability.
  • The DC21.0021.1111 has a moisture sensitivity level (MSL) of 3, which means it can withstand moderate humidity levels. However, it's essential to ensure proper sealing and protection of the component in high-moisture environments to prevent damage or corrosion.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC21.0021.1111 Overview

Use the download button to access the DC21.0021.1111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC21., or try a keyword search, such as Mains Power Connectors
