Part Image

DC21.0024.1111 - SCHURTER

Description: CAD-Model shows variation protection class I, 4 holes for screws M3, 2-pole rocker switch non-illuminated, with cover, terminal 4.8 mm

Download DC21.0024.1111 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DC21.0024.1111 - SCHURTER - PCB symbol
click to zoom
PCB Footprints

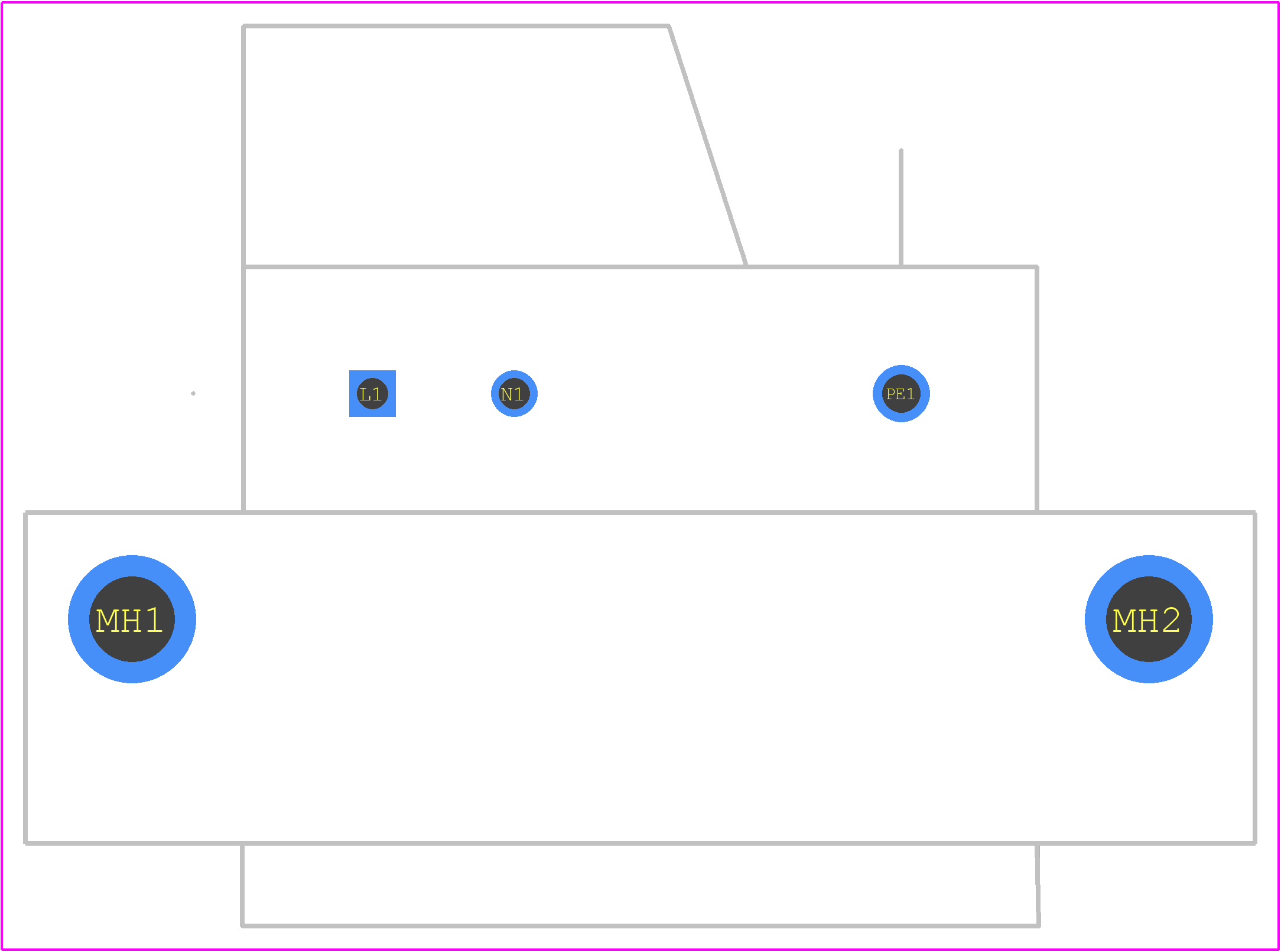

DC21.0024.1111 - SCHURTER PCB footprint - Other - Other - DC21.0024.1111-3
click to zoom
3D Models
DC21.0024.1111 - SCHURTER - 3D model - Other - DC21.0024.1111-3
click to zoom

DC21.0024.1111 Details

  • Manufacturer Part Number:

    DC21.0024.1111

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 5 Days

  • Manufacturer:

    Schurter Electronic Components

  • YTEOL:

    8.3

  • Additional Feature:

    STANDARDS: CUL, IEC 60320-1, IEC 61058-1, UL, VDE

  • Body Breadth:

    1.25 inch

  • Body Depth:

    1.5 inch

  • Body Length:

    2.04 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    MAINS POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A, 250VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Type:

    PANEL

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CCC; CSA

  • Termination Type:

    SCREW

  • Total Number of Contacts:

    3

DC21.0024.1111 Frequently Asked Questions (FAQs)

  • Schurter provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and thermal management.
  • Schurter's DC21.0024.1111 is certified to various safety standards (e.g., IEC 62368-1, UL 62368-1). Ensure you review the certification documents and consult with Schurter's technical support to confirm compliance with your specific requirements.
  • The DC21.0024.1111 is rated for operation from -40°C to 85°C. However, derating may be necessary for high-temperature applications. Consult Schurter's datasheet and application notes for more information.
  • Schurter's DC21.0024.1111 is designed to withstand moderate vibration and shock. However, for extreme environments, consult Schurter's technical support to discuss custom testing or specialized products that can meet your specific requirements.
  • Follow standard ESD protection procedures when handling the DC21.0024.1111, such as using an ESD wrist strap, mat, or workstation. Schurter also recommends storing the components in their original packaging to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC21.0024.1111 Overview

Use the download button to access the DC21.0024.1111 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC21., or try a keyword search, such as Mains Power Connectors
