DC4859J5005AHF - ANAREN

Description: RF Directional Coupler 4.7GHz to 5.9GHz 6dB 5W 0805 (2012 Metric), -55°C to +150°C

Download DC4859J5005AHF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

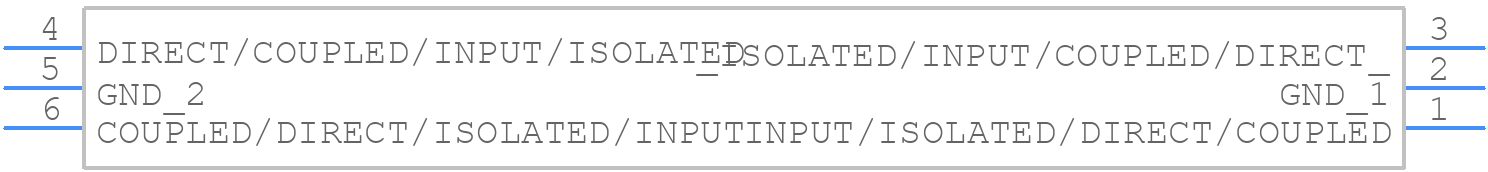

DC4859J5005AHF - ANAREN - PCB symbol
click to zoom
PCB Footprints
DC4859J5005AHF - ANAREN PCB footprint - Other - Other - DC4859J5005AHF-2
click to zoom
3D Models
DC4859J5005AHF - ANAREN - 3D model - Other - DC4859J5005AHF-2
click to zoom

DC4859J5005AHF Details

  • Manufacturer Part Number:

    DC4859J5005AHF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Reach Compliance Code:

    Compliant

  • Manufacturer:

    Anaren Microwave

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.99 dBm

  • Insertion Loss-Max:

    0.5 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    5900 MHz

  • Operating Frequency-Min:

    4700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Equivalence Code:

    SOLCC6,.05,25

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.24

DC4859J5005AHF Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
  • Proper thermal management can be achieved by following the guidelines in the datasheet and application note AN-112, which recommend a thermal pad on the bottom of the device, and using a heat sink or thermal interface material to dissipate heat.
  • The maximum operating temperature range for the DC4859J5005AHF is -40°C to +125°C, as specified in the datasheet. However, it's recommended to derate the power handling at higher temperatures to ensure reliability.
  • Yes, the DC4859J5005AHF can be used in a non-50 ohm system, but impedance matching is required to ensure optimal performance. Anaren Microwave provides a impedance matching calculator tool on their website to help with this process.
  • The recommended soldering process and temperature profile can be found in the Anaren Microwave application note AN-114, which provides guidelines for reflow soldering and wave soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DC4859J5005AHF Overview

Use the download button to access the DC4859J5005AHF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DC485, or try a keyword search, such as RF/Microwave Couplers
