DCCM100PCBR - Cinch Connectivity Solutions

DCCM100PCBR Details

• Manufacturer Part Number:

  DCCM100PCBR

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Cinch Connectivity Solutions

• YTEOL:

  8.57

• Additional Feature:

  STANDARD: MIL-C-83513

• Body Breadth:

  0.394 inch

• Body Depth:

  1 inch

• Body Length:

  2.175 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D MICROMINIATURE CONNECTOR

• Contact Finish Mating:

  AU

• Contact Finish Termination:

  GOLD

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  8 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  600VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  1.668 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE/GLASS FILLED POLYESTER

• JESD-609 Code:

  e4

• MIL Conformance:

  YES

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  8

• Number of Rows Loaded:

  4

• Operating Temperature-Max:

  135 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

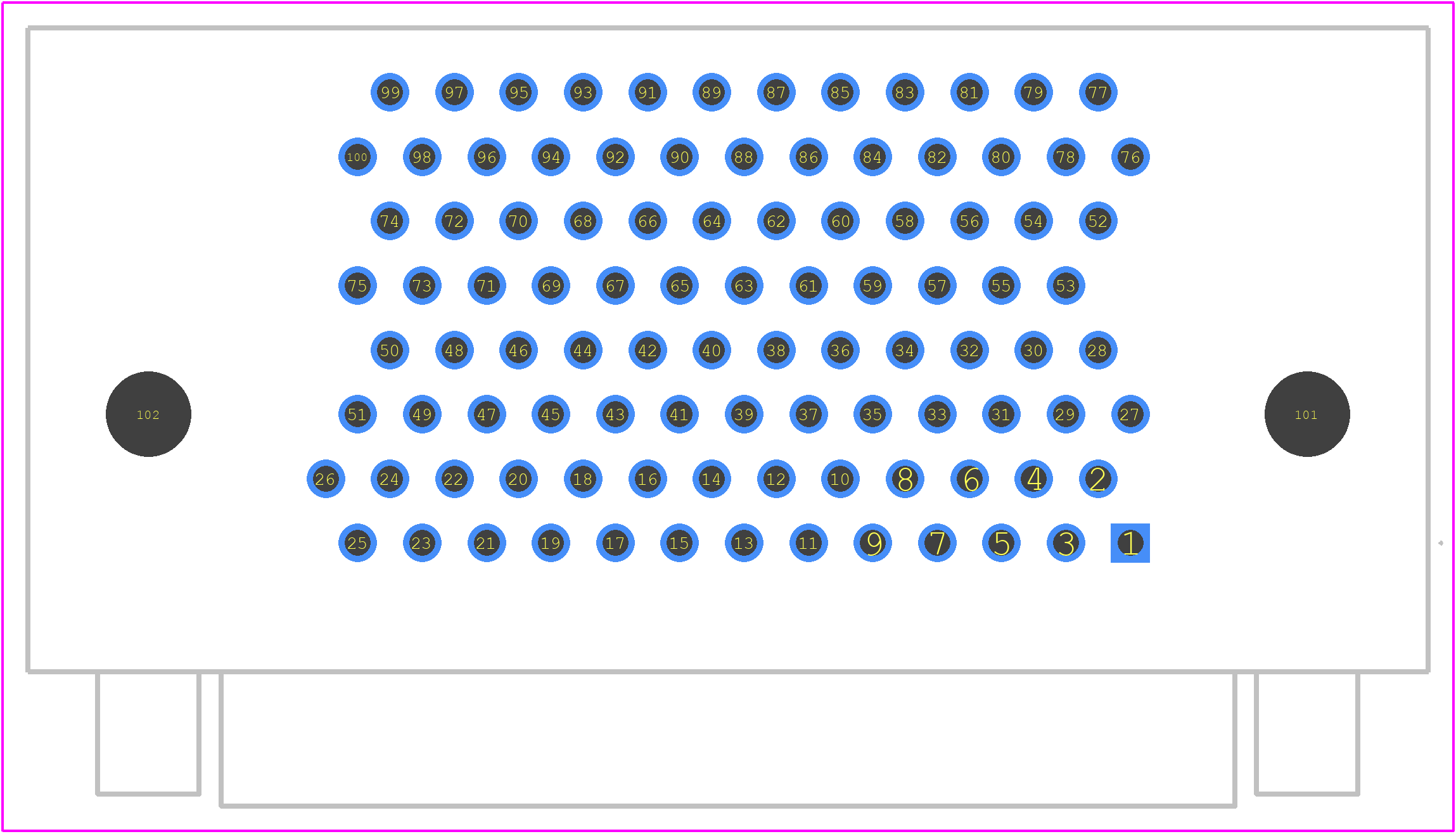

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Shell Finish:

  CADMIUM/NICKEL

• Shell Material:

  ALUMINUM ALLOY

• Shell Size:

  H

• Terminal Length:

  0.109 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  100

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .139 N
