DCL541B01 - Toshiba

Description: Data rate : Up to 150 Mbps Supply voltage : 2.25 V to 5.5 V Temperature Range : –40 °C to 110 °C Propagation Delay :10.9 ns Typical (5.0 V operation) Default Output : High and Low Options High CMTI(min) : ±100 kV/μs Withstand Voltage : 5 kVrms Package : 16pin SOIC Wide body

Download DCL541B01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

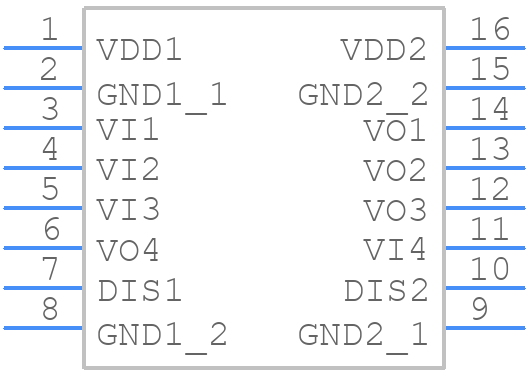

DCL541B01 - Toshiba - PCB symbol
click to zoom
PCB Footprints
DCL541B01 - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 16-PIN SOIC
click to zoom
3D Models
DCL541B01 - Toshiba - 3D model - Small Outline Packages - 16-PIN SOIC
click to zoom

DCL541B01 Details

  • Manufacturer Part Number:

    DCL541B01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Toshiba America Electronic Components

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCL541B01 Overview

Use the download button to access the DCL541B01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCL54, or try a keyword search, such as Other Interface ICs
