DCM3623T36G31C2T00 - VICOR

Description: Isolated DC/DC Converters - Through Hole 3623 DCM 24Vin 28V 3 20W

Download DCM3623T36G31C2T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T36G31C2T00 - VICOR - PCB symbol
click to zoom
PCB Footprints

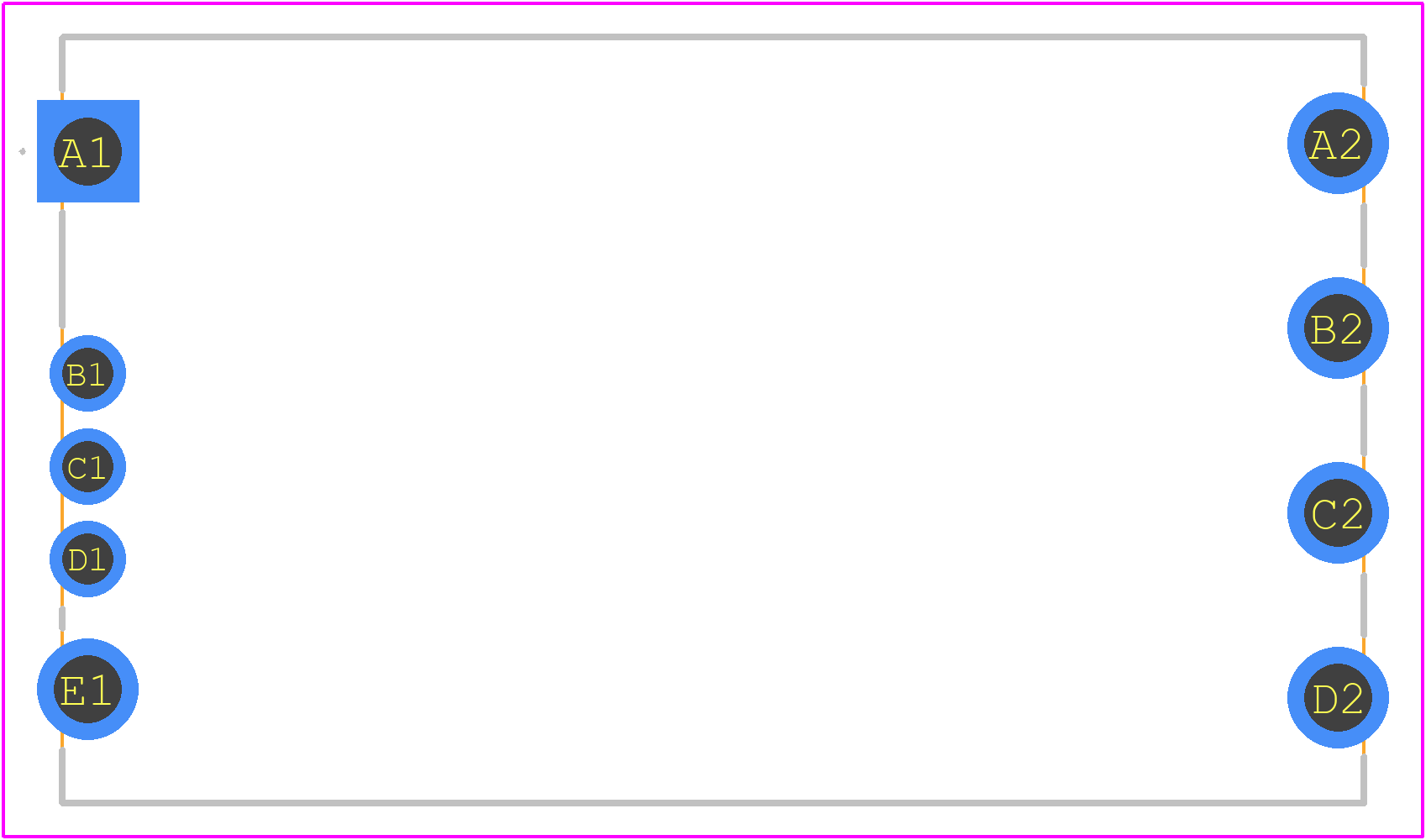

DCM3623T36G31C2T00 - VICOR PCB footprint - Other - Other - DCM3623T36G31C2T00-1
click to zoom
3D Models
DCM3623T36G31C2T00 - VICOR - 3D model - Other - DCM3623T36G31C2T00-1
click to zoom

DCM3623T36G31C2T00 Details

  • Manufacturer Part Number:

    DCM3623T36G31C2T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-12

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    95 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    16.8 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T36G31C2T00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to the bottom layer to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the device.
  • The DCM3623T36G31C2T00 is rated for operation up to 100°C. However, Vicor recommends derating the output power by 1% per degree Celsius above 80°C to ensure reliable operation.
  • Vicor recommends checking the input voltage, output voltage, and output current to identify the root cause of the issue. Additionally, checking the thermal performance and ensuring proper PCB layout can help troubleshoot issues.
