DCM3623T50M04A2T70 - VICOR

Description: Isolated DC/DC Converters - Through Hole 120W 28Vin 3.3Vout 3623 Package

Download DCM3623T50M04A2T70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

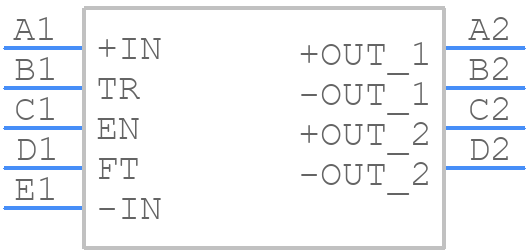

DCM3623T50M04A2T70 - VICOR - PCB symbol
click to zoom
PCB Footprints

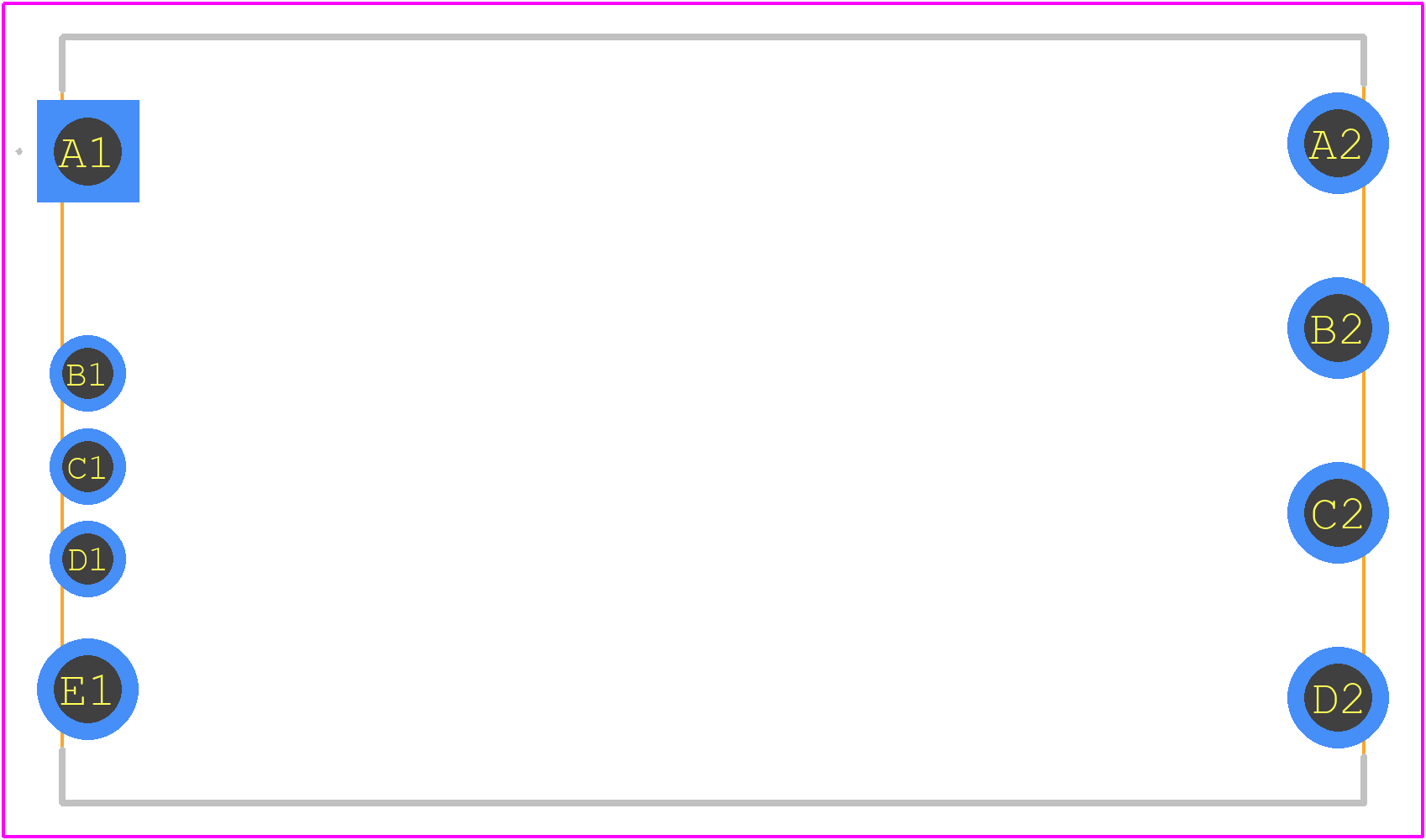

DCM3623T50M04A2T70 - VICOR PCB footprint - Other - Other - DCM3623T50M04A2T70-1
click to zoom
3D Models
DCM3623T50M04A2T70 - VICOR - 3D model - Other - DCM3623T50M04A2T70-1
click to zoom

DCM3623T50M04A2T70 Details

  • Manufacturer Part Number:

    DCM3623T50M04A2T70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CSA, EN, IEC, UKCA, UL

  • Efficiency (Main Output):

    89.2%

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    16 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Load Regulation-Max:

    3%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    36.4 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    UNDER VOLTAGE; OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.158368 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    120 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.0452 s

  • Width:

    22.8 mm

DCM3623T50M04A2T70 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their application notes and datasheets. The selection depends on factors such as input voltage, output voltage, and ripple current requirements. It's recommended to consult with Vicor's application engineers or follow their recommended component lists.
  • The DCM3623T50M04A2T70 has an operating temperature range of -40°C to +125°C. However, derating may be required for high-temperature operation, and it's recommended to consult the datasheet and application notes for more information.
  • Vicor provides built-in overcurrent protection and fault monitoring features in their modules. The DCM3623T50M04A2T70 has an overcurrent protection threshold of 150% of the rated output current. Additionally, the module has a fault pin that can be used to monitor for faults such as overvoltage, undervoltage, and overtemperature.
  • The typical efficiency of the DCM3623T50M04A2T70 is around 92-95% depending on the input voltage and load conditions. Vicor provides efficiency curves and data in their datasheets and application notes, which can be used to estimate the efficiency under specific operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T50M04A2T70 Overview

Use the download button to access the DCM3623T50M04A2T70 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
