DCM3623T50M17C2M70 - VICOR

Description: Isolated Module DC DC Converter 1 Output 15V 21.4A 16V - 50V Input , 321W , 2.25kV , -55°C ~ 125°C , 9-DIP

Download DCM3623T50M17C2M70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

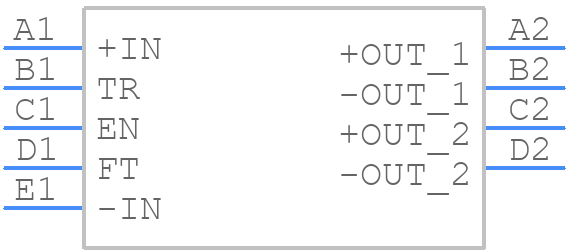

DCM3623T50M17C2M70 - VICOR - PCB symbol
click to zoom
PCB Footprints

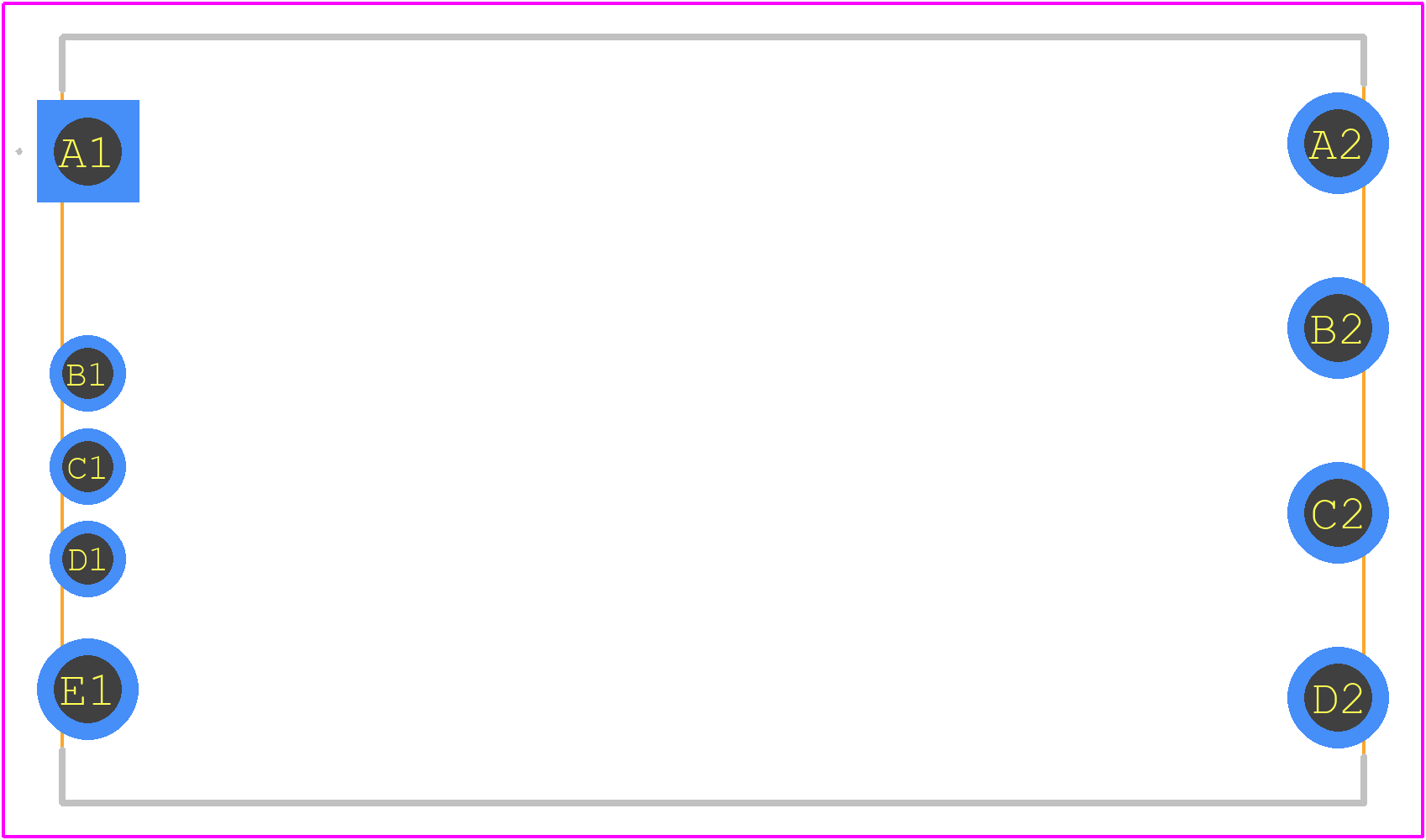

DCM3623T50M17C2M70 - VICOR PCB footprint - Other - Other - 9-DIP_2025-1
click to zoom
3D Models
DCM3623T50M17C2M70 - VICOR - 3D model - Other - 9-DIP_2025-1
click to zoom

DCM3623T50M17C2M70 Details

  • Manufacturer Part Number:

    DCM3623T50M17C2M70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, CSA, EN, IEC, UKCA, UL

  • Efficiency (Main Output):

    92.4%

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    16 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    21.4 A

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    9 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    UNDER VOLTAGE; OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.1961925 Vrms

  • Screening Level:

    EN/IEC/UL 62368-1

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.0742 s

  • Width:

    22.8 mm

DCM3623T50M17C2M70 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their application notes and datasheets. The selection depends on factors such as input voltage, output voltage, and desired ripple current. It's recommended to consult with Vicor's application engineers or follow their recommended component lists.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines and derating the capacitors according to the application's requirements. It's recommended to consult with Vicor's application engineers for specific guidance.
  • Vicor provides guidance on overcurrent protection and fault detection in their application notes and datasheets. The module has built-in overcurrent protection, but external circuitry may be required to detect and respond to faults. It's recommended to consult with Vicor's application engineers for specific guidance.
  • Vicor recommends a specific startup and shutdown sequence to ensure proper operation and prevent damage to the module. This information is typically provided in the application notes and datasheets. It's recommended to follow Vicor's guidelines to ensure reliable operation.
