DCM3623T50T13A6M00 - VICOR

Description: Isolated DC/DC Converters - Through Hole DCM 12V 160W

Download DCM3623T50T13A6M00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50T13A6M00 - VICOR - PCB symbol
click to zoom
PCB Footprints

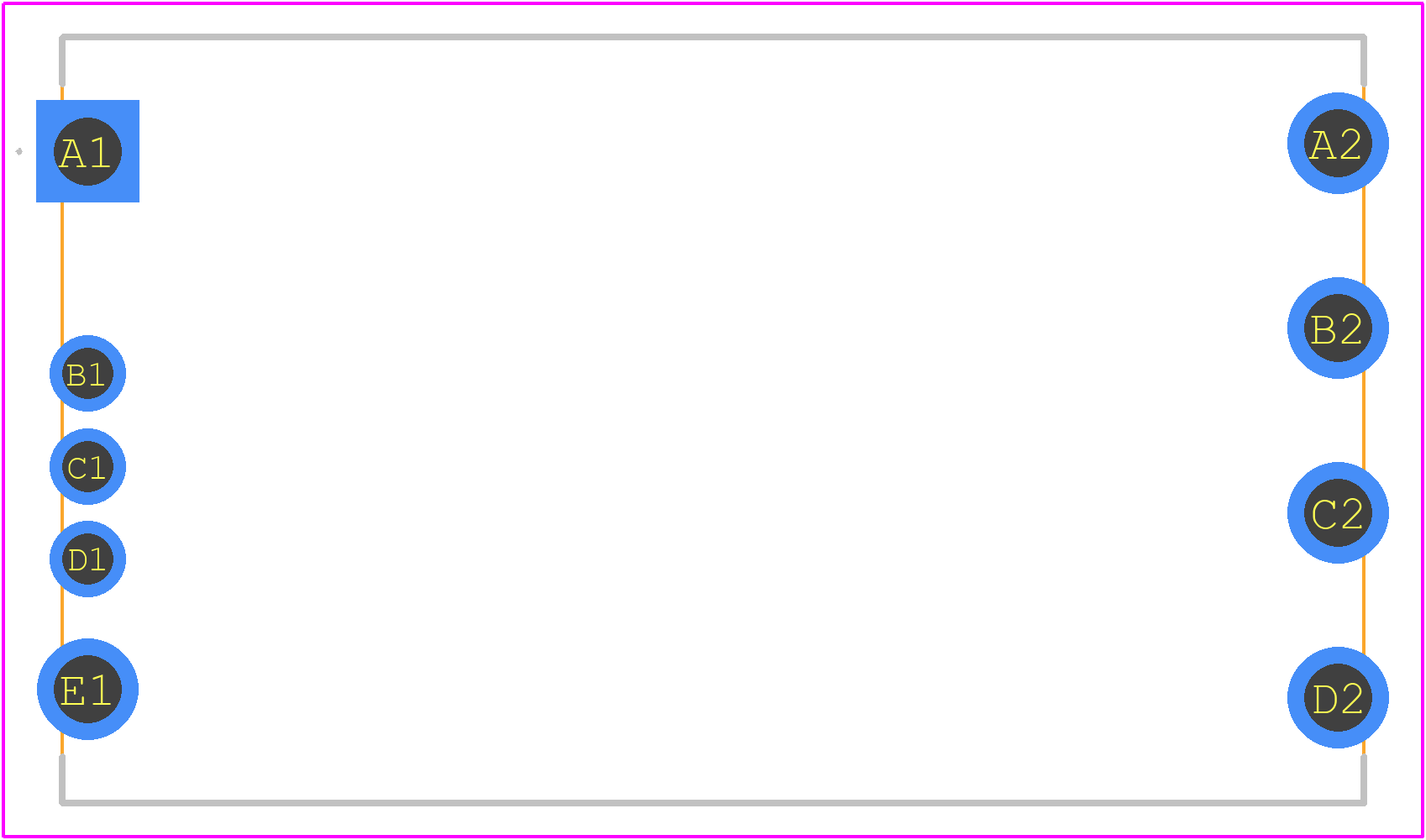

DCM3623T50T13A6M00 - VICOR PCB footprint - Other - Other - DCM3623T50T13A6M00-2
click to zoom
3D Models
DCM3623T50T13A6M00 - VICOR - 3D model - Other - DCM3623T50T13A6M00-2
click to zoom

DCM3623T50T13A6M00 Details

  • Manufacturer Part Number:

    DCM3623T50T13A6M00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-12

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    30 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    95 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    160 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50T13A6M00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current, and a minimum input capacitance of 10uF to ensure stable operation.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage, or 1.5V peak-to-peak, whichever is smaller.
  • Yes, the DCM3623T50T13A6M00 is rated for operation up to 100°C ambient temperature, but derating may be required for temperatures above 85°C. Consult the datasheet for derating curves.
  • Vicor recommends checking the input voltage, output voltage, and current sense resistors for correct values and connections. Also, check for proper thermal management and ensure that the device is not overheating.
