DCM3623T50T13A6M70 - VICOR

Description: Isolated DC/DC Converters - Through Hole 3623 DCM 160W 30Vin 12V

Download DCM3623T50T13A6M70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T50T13A6M70 - VICOR - PCB symbol
click to zoom

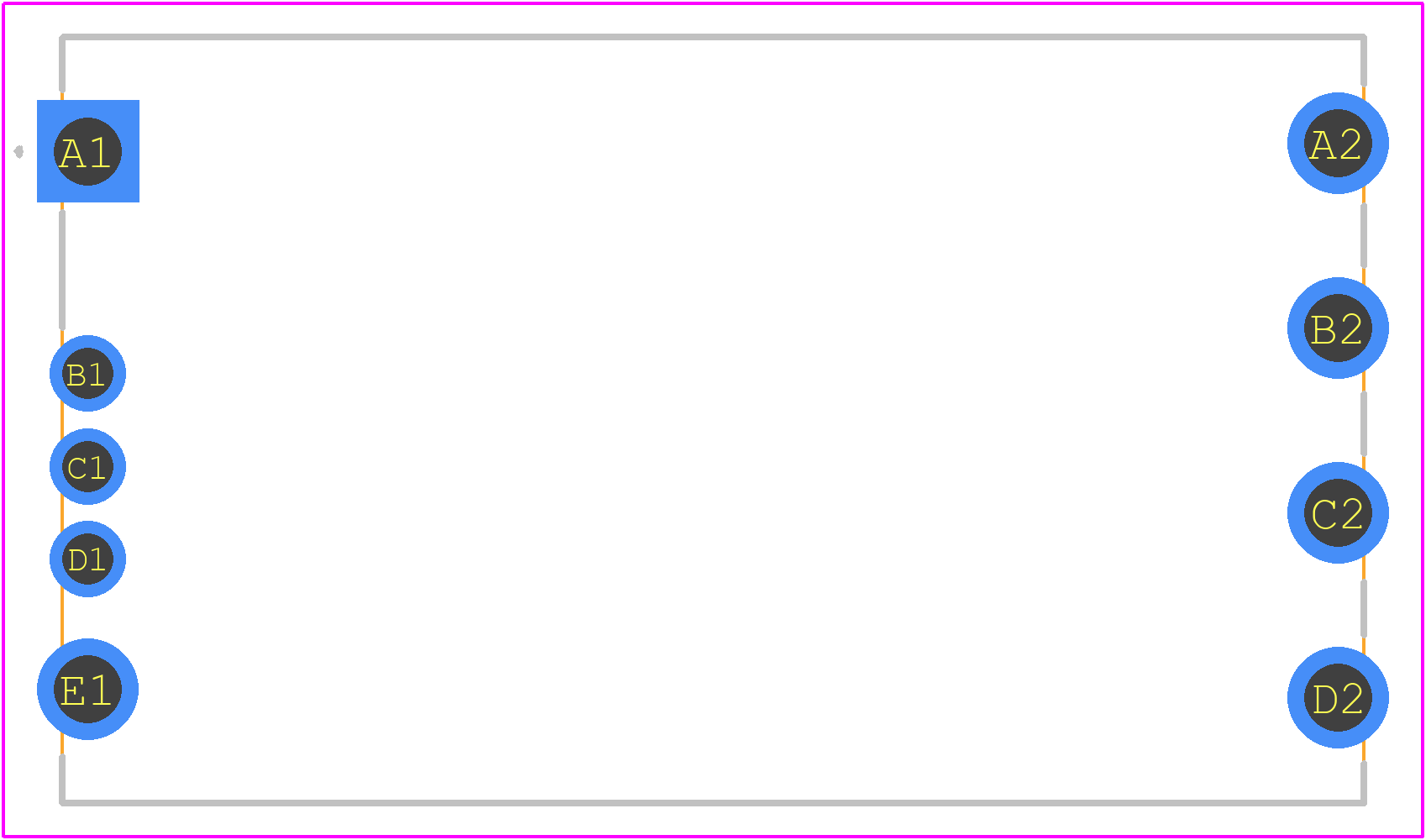

PCB Footprints
DCM3623T50T13A6M70 - VICOR PCB footprint - Other - Other - DCM3623T50T13A6M70-1
click to zoom
3D Models
DCM3623T50T13A6M70 - VICOR - 3D model - Other - DCM3623T50T13A6M70-1
click to zoom

DCM3623T50T13A6M70 Details

  • Manufacturer Part Number:

    DCM3623T50T13A6M70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    50 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    30 V

  • JESD-30 Code:

    R-MDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    160 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T50T13A6M70 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current. A minimum of 10uF capacitance on the input and output is also recommended to filter out noise and ensure stable operation.
  • The maximum allowed input voltage ripple for the DCM3623T50T13A6M70 is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the module.
  • The DCM3623T50T13A6M70 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% for every 1°C above 80°C to ensure reliable operation.
  • Vicor recommends a common-mode choke and a differential-mode filter capacitor to ensure compliance with EMI regulations. The specific component values and configuration will depend on the application and regulatory requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T50T13A6M70 Overview

Use the download button to access the DCM3623T50T13A6M70 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
