DCM3623T75H13C2T00 - VICOR

Description: Isolated DC/DC Converters 3623 DCM 48Vin 12V 3 20W

Download DCM3623T75H13C2T00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T75H13C2T00 - VICOR - PCB symbol
click to zoom
PCB Footprints

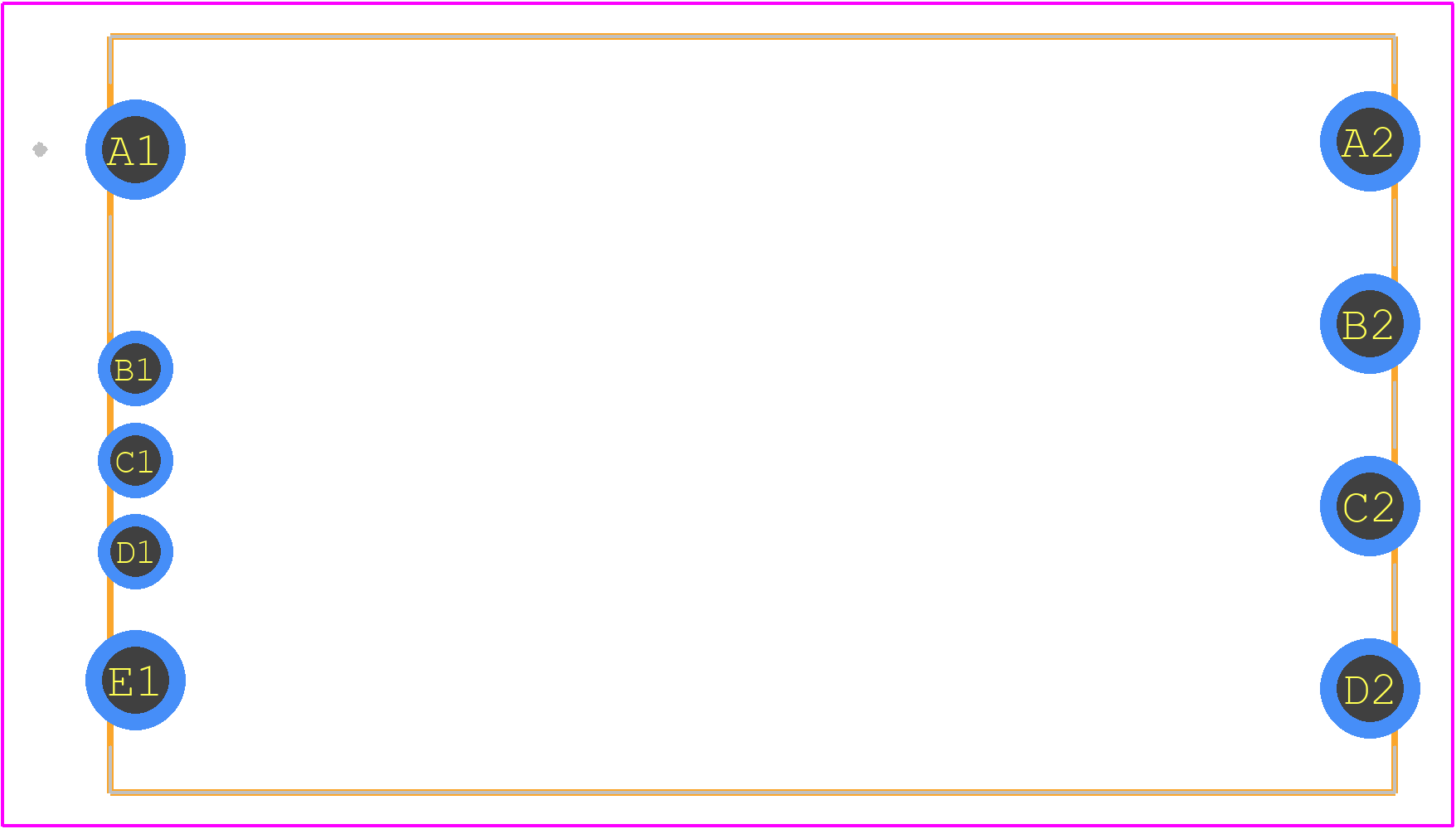

DCM3623T75H13C2T00 - VICOR PCB footprint - Other - Other - DCM3623T75H13C2T00-1
click to zoom
3D Models
DCM3623T75H13C2T00 - VICOR - 3D model - Other - DCM3623T75H13C2T00-1
click to zoom

DCM3623T75H13C2T00 Details

  • Manufacturer Part Number:

    DCM3623T75H13C2T00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-12

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    95 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T75H13C2T00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and thermal vias to ensure optimal thermal performance. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit to limit the inrush current. A minimum of 10uF capacitance on the input and output is also recommended to filter out noise and ensure stable operation.
  • The maximum allowed input voltage ripple for the DCM3623T75H13C2T00 is 10% of the nominal input voltage. Exceeding this limit may affect the reliability and performance of the device.
  • The DCM3623T75H13C2T00 is rated for operation up to 100°C ambient temperature. However, Vicor recommends derating the output power by 1% for every 1°C above 80°C to ensure reliable operation.
  • Vicor recommends using an oscilloscope to monitor the input and output voltages, as well as the current sense pins. Check for proper PCB layout, component selection, and thermal management to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T75H13C2T00 Overview

Use the download button to access the DCM3623T75H13C2T00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
