DCM3623T75H26C2M00 footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

PCB Footprints

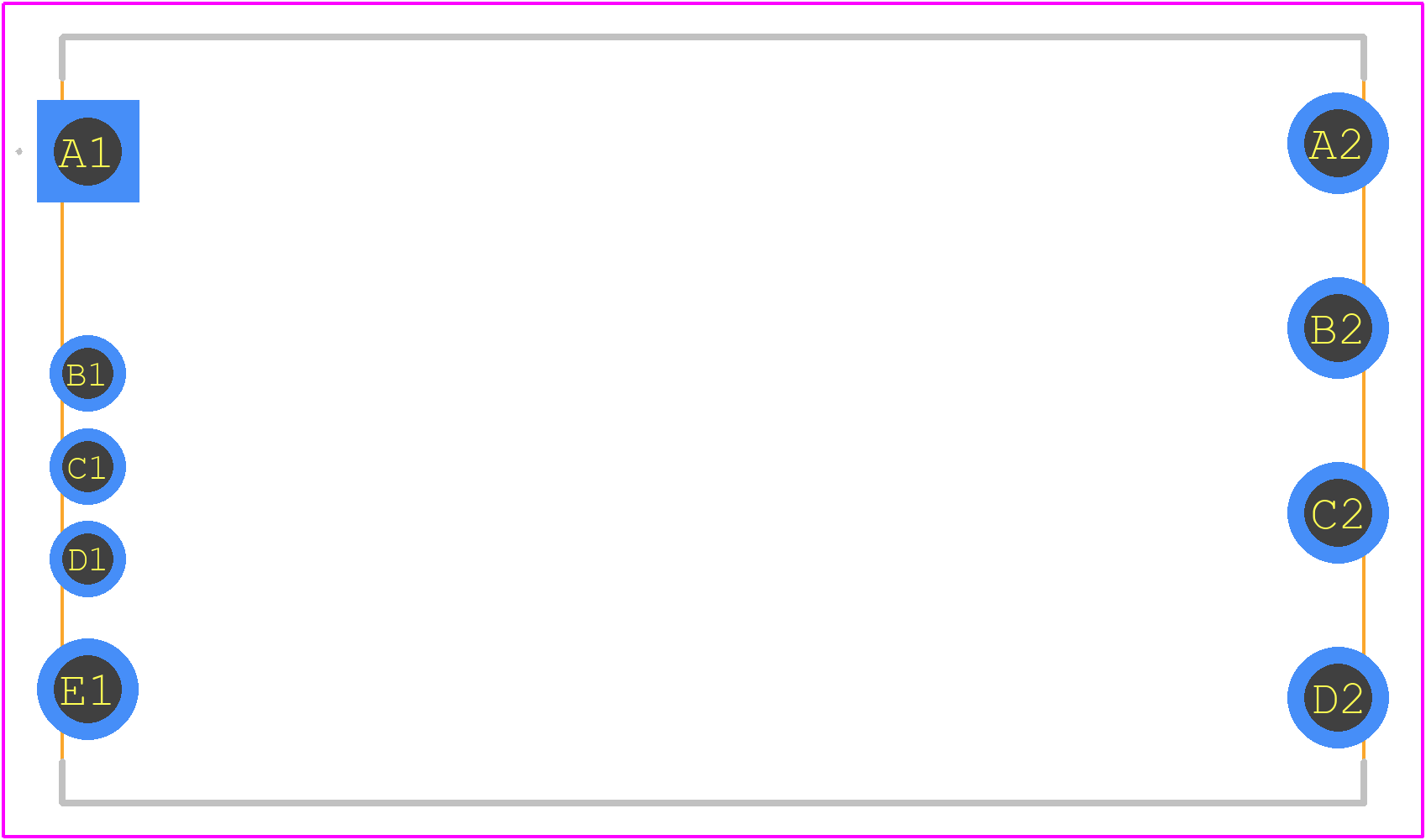

DCM3623T75H26C2M00 - VICOR PCB footprint - Other - Other - DCM3623T75H26C2M00-1

click to zoom

3D Models

DCM3623T75H26C2M00 - VICOR - 3D model - Other - DCM3623T75H26C2M00-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCM3623T75H26C2M00
Part Number DCM3623T75H26C2M00
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - DCM3623T75H26C2M00-1
Released Date Jan 30, 2024
Last Modified Date Jan 31, 2024 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

DCM3623T75H26C2M00 Details

Manufacturer Part Number:
DCM3623T75H26C2M00
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-9
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Date Of Intro:
2016-10-12
Manufacturer:
Vicor Corporation
YTEOL:
7.3
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
75 V
Input Voltage-Min:
36 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XDMA-P9
JESD-609 Code:
e4
Length:
38.72 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
95 °C
Output Voltage-Max:
26.4 V
Output Voltage-Min:
14.4 V
Output Voltage-Nom:
24 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
7.31 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
320 W
Trim/Adjustable Output:
YES
Width:
22.8 mm

DCM3623T75H26C2M00 Frequently Asked Questions (FAQs)

Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor provides guidance on capacitor selection in their datasheet and application notes. The selection depends on factors such as input voltage, output voltage, and ripple current requirements. It's recommended to consult with Vicor's technical support or follow their recommended component lists.
The DCM3623T75H26C2M00 has an operating temperature range of -40°C to +125°C. However, derating may be required for high-temperature operation, and it's recommended to consult the datasheet and Vicor's technical support for specific guidance.
Vicor provides guidance on overcurrent protection and fault monitoring in their datasheet and application notes. It's recommended to use external circuitry to implement overcurrent protection and fault monitoring, and to consult with Vicor's technical support for specific guidance.
Vicor provides MTBF ratings for their modules in their datasheet or reliability reports. The MTBF rating for the DCM3623T75H26C2M00 is typically in the range of 1-5 million hours, depending on the specific operating conditions and environment.
