DCM3623T75H31C2M00 - VICOR

Description: Isolated DC/DC Converters 3623 DCM 48Vin 28V 3 20W

Download DCM3623T75H31C2M00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623T75H31C2M00 - VICOR - PCB symbol
click to zoom
PCB Footprints

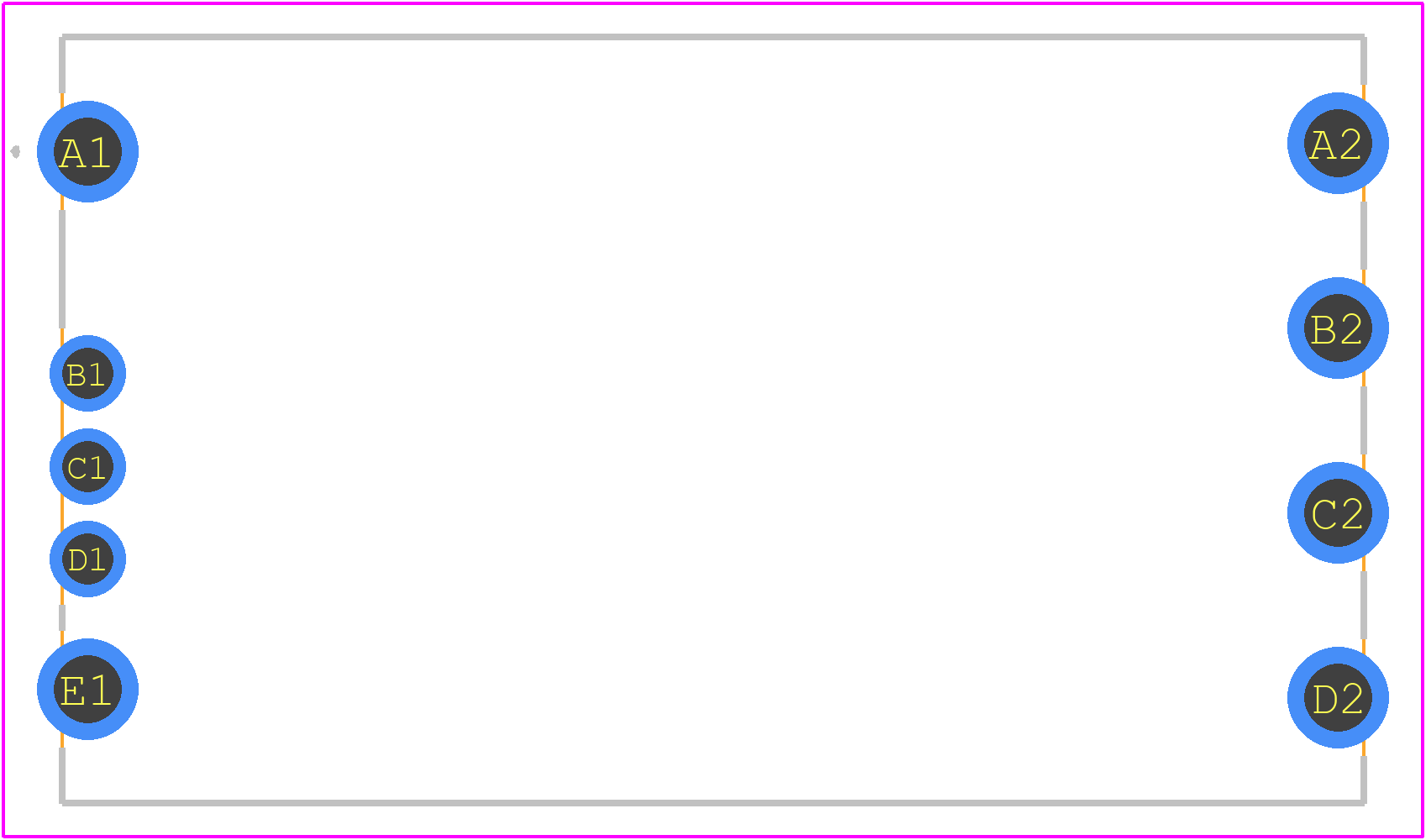

DCM3623T75H31C2M00 - VICOR PCB footprint - Other - Other - DCM3623T75H31C2M00-1
click to zoom
3D Models
DCM3623T75H31C2M00 - VICOR - 3D model - Other - DCM3623T75H31C2M00-1
click to zoom

DCM3623T75H31C2M00 Details

  • Manufacturer Part Number:

    DCM3623T75H31C2M00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2016-10-13

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    93 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    16.8 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    320 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22.8 mm

DCM3623T75H31C2M00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their datasheet and application notes. The selection depends on factors such as input voltage, output voltage, and desired ripple current. It's recommended to consult with Vicor's technical support or follow their recommended component lists.
  • The maximum allowable ripple current for the input and output capacitors is typically specified in the datasheet or application notes. For the DCM3623T75H31C2M00, the recommended input capacitor ripple current is 1.5A RMS, and the recommended output capacitor ripple current is 2.5A RMS.
  • The DCM3623T75H31C2M00 has built-in overcurrent protection and fault monitoring capabilities. Vicor provides guidance on how to implement these features in their datasheet and application notes. Additionally, external circuitry can be added to enhance fault monitoring and protection capabilities.
  • The recommended startup sequence and timing for the DCM3623T75H31C2M00 is typically specified in the datasheet or application notes. It's recommended to follow Vicor's guidelines to ensure proper startup and operation of the module.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623T75H31C2M00 Overview

Use the download button to access the DCM3623T75H31C2M00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
