DCM3623TA5N13B4T70 - VICOR

Description: Isolated Module DC DC Converter 1 Output 12V 20A 43V - 154V Input -40°C ~ 125°C Through Hole

Download DCM3623TA5N13B4T70 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCM3623TA5N13B4T70 - VICOR - PCB symbol
click to zoom

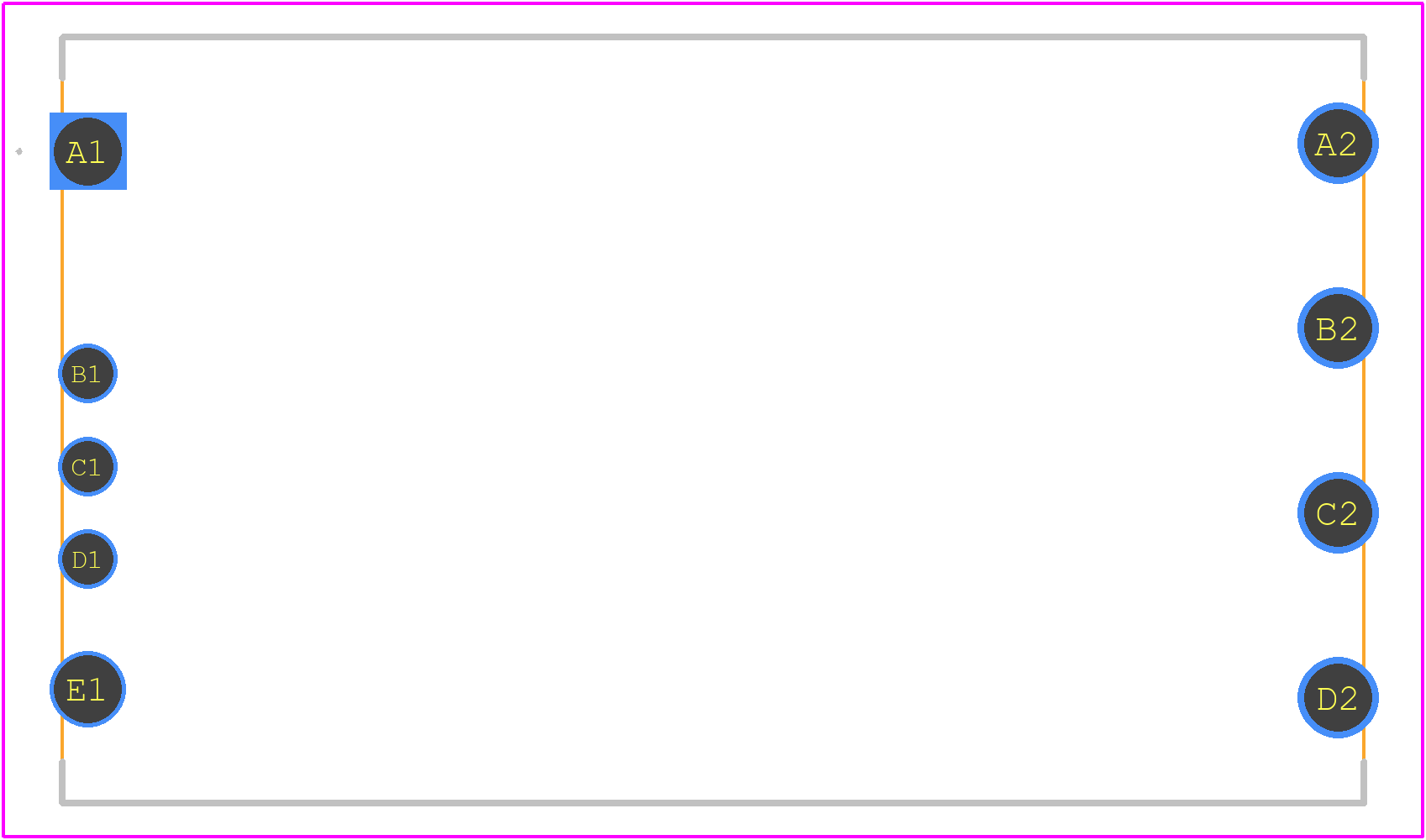

PCB Footprints
DCM3623TA5N13B4T70 - VICOR PCB footprint - Other - Other - DCM3623TA5N13B4T70-2
click to zoom
3D Models
DCM3623TA5N13B4T70 - VICOR - 3D model - Other - DCM3623TA5N13B4T70-2
click to zoom

DCM3623TA5N13B4T70 Details

  • Manufacturer Part Number:

    DCM3623TA5N13B4T70

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, UL, CE, UKCA

  • Efficiency (Main Output):

    92.5%

  • Input Voltage-Max:

    154 V

  • Input Voltage-Min:

    43 V

  • Input Voltage-Nom:

    100 V

  • JESD-30 Code:

    R-XDMA-T9

  • JESD-609 Code:

    e4

  • Length:

    38.72 mm

  • Load Regulation-Max:

    2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    7.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,9LEAD,1.5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.1435 Vrms

  • Screening Level:

    IEC/EN/UL 62368-1

  • Seated Height-Max:

    7.31 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    240 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.0762 s

  • Width:

    22.8 mm

DCM3623TA5N13B4T70 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their application notes and datasheets. The selection depends on factors such as input voltage, output voltage, and ripple current requirements. It's recommended to consult with Vicor's application engineers or follow their recommended component lists.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines and ensuring that the ripple current does not exceed 30-40% of the capacitor's rated current.
  • Vicor provides a fault monitoring pin that can be used to detect overcurrent, overvoltage, and undervoltage conditions. The module also has a built-in overcurrent protection feature. It's recommended to consult with Vicor's application engineers or follow their recommended implementation guidelines.
  • Vicor recommends a specific startup sequence and timing to ensure proper operation and minimize stress on the module. This information is typically provided in the application notes or datasheets, or can be obtained by consulting with Vicor's application engineers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DCM3623TA5N13B4T70 Overview

Use the download button to access the DCM3623TA5N13B4T70 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCM36, or try a keyword search, such as Power Supply Modules
