DCM3714BD2K31E0C09 - VICOR

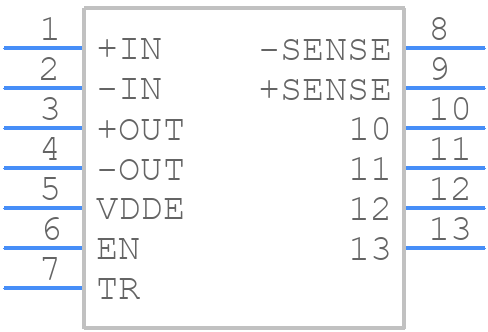

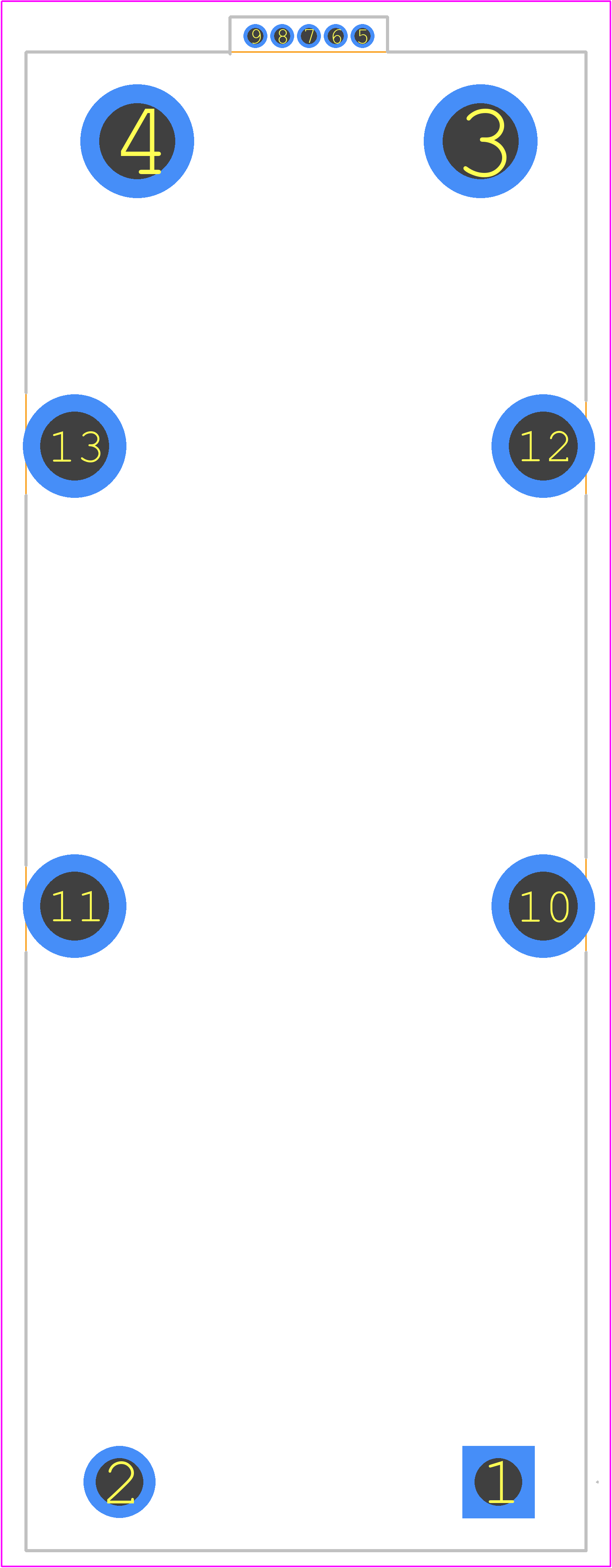

DCM3714BD2K31E0C09 Details

• Manufacturer Part Number:

  DCM3714BD2K31E0C09

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MODULE-9

• ECCN Code:

  EAR99

• Factory Lead Time:

  28 Weeks

• Date Of Intro:

  2016-05-31

• Manufacturer:

  Vicor Corporation

• YTEOL:

  9.2

• Additional Feature:

  SEATED HT CALCULATED

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, TUV, UL

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  93.7%

• Input Voltage-Max:

  420 V

• Input Voltage-Min:

  160 V

• Input Voltage-Nom:

  270 V

• JESD-30 Code:

  R-XXMA-P9

• Length:

  95.13 mm

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  9

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  17.86 A

• Output Voltage-Max:

  28.14 V

• Output Voltage-Min:

  27.86 V

• Output Voltage-Nom:

  28 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  XMA

• Package Equivalence Code:

  MODULE,9LEAD,3.25

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

• Ripple Voltage (Main Out):

  0.0777 Vrms

• Seated Height-Max:

  9.781 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  500 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.04 s

• Width:

  35.5 mm
