DCMMD8H8PJ - ITT CANNON

Description: Combination Layout D Sub Connector, Combo D*MM Series, DC-8W8, Plug, 8 Contacts, 8 Power, Solder

Download DCMMD8H8PJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCMMD8H8PJ - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

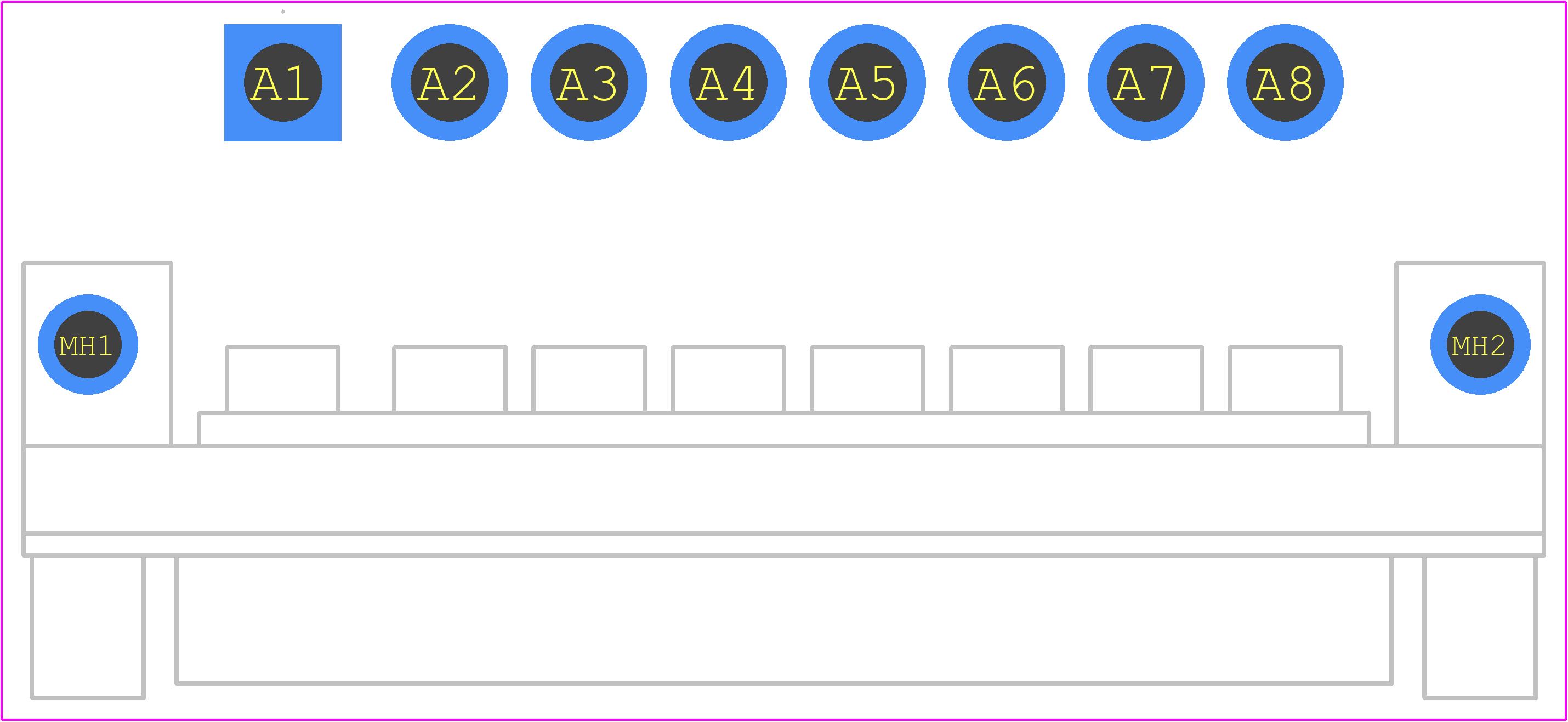

DCMMD8H8PJ - ITT CANNON PCB footprint - Other - Other - DCMMD8H8PJ-4
click to zoom
3D Models
DCMMD8H8PJ - ITT CANNON - 3D model - Other - DCMMD8H8PJ-4
click to zoom

DCMMD8H8PJ Details

  • Manufacturer Part Number:

    DCMMD8H8PJ

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-C-24308, PANEL MOUNT

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYESTER

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    CHROMATE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

DCMMD8H8PJ Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw locks on the DCMMD-8H8P-J connector.
  • Yes, the DCMMD-8H8P-J connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • The operating temperature range for the DCMMD-8H8P-J connector is -55°C to +125°C (-65°F to +257°F).
  • Yes, the DCMMD-8H8P-J connector is designed to be resistant to harsh environments, including salt spray and moisture, making it suitable for use in marine, industrial, and outdoor applications.
  • The mating cycle life of the DCMMD-8H8P-J connector is 500 cycles minimum, ensuring reliable connections over an extended period.
