DCMP37PJK87 footprint, schematic symbol and 3D model by ITT CANNON

Symbol

click to zoom

PCB Footprints

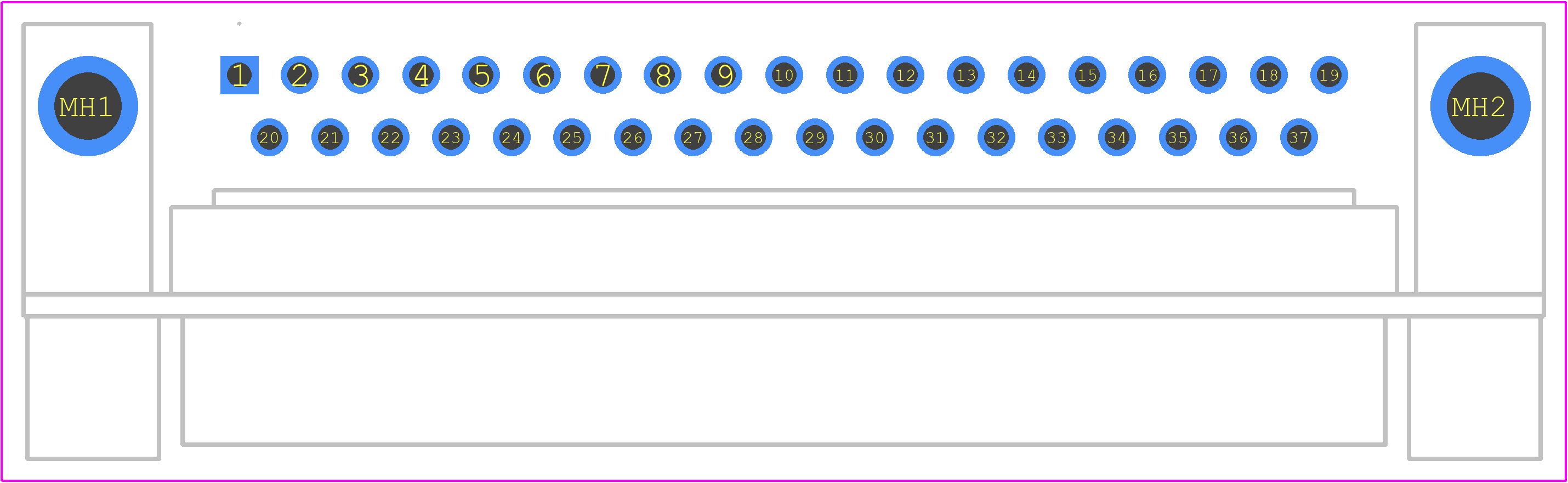

DCMP37PJK87 - ITT CANNON PCB footprint - Other - Other - DCMP37PJK87-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DCMP37PJK87
Part Number DCMP37PJK87
Manufacturer ITT CANNON
Pin Count 39
Part Category Connector
Package Category Other
Footprint Name Other - DCMP37PJK87-1
Released Date Jun 13, 2023
Last Modified Date Jun 13, 2023 12:24 PM UTC
Pinout / Pin List Click Here (Member Only)

DCMP37PJK87 Details

Manufacturer Part Number:
DCMP37PJK87
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
3 Days
Manufacturer:
ITT Interconnect Solutions
YTEOL:
8.5
Additional Feature:
PANEL MOUNT
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Shell Finish:
TIN
Shell Material:
STEEL
Shell Size:
4/C
Termination Type:
SOLDER
Total Number of Contacts:
37
UL Flammability Code:
94V-0

DCMP37PJK87 Frequently Asked Questions (FAQs)

The operating temperature range of the DCMP-37P-J-K87 connector is -55°C to 125°C.
Yes, the DCMP-37P-J-K87 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
The DCMP-37P-J-K87 connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections over an extended period.
Yes, the DCMP-37P-J-K87 connector is designed to operate in harsh environments, including high humidity and salt spray, making it suitable for applications in marine, industrial, or outdoor environments.
The typical insertion force required for the DCMP-37P-J-K87 connector is 10-15 N (2.2-3.3 lbf) per contact, ensuring a secure connection with minimal effort.

Trust Checks

Community Provided

System Verified

Community Approved

DCMP37PJK87 Overview

Use the download button to access the DCMP37PJK87 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DCMP3, or try a keyword search, such as D Type Connectors
