Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to place the device near the power source to minimize loop inductance. Additionally, a thermal pad on the bottom of the device should be connected to a thermal relief pattern on the PCB to improve heat dissipation.
Use the WEBENCH Power Designer tool provided by Texas Instruments to configure the DCP020507P for your specific application. The tool allows you to select the input voltage, output voltage, and output current, and generates a customized schematic and bill of materials.
The critical components that affect the stability of the DCP020507P are the input and output capacitors, the inductor, and the feedback resistors. Ensure that these components meet the recommended specifications and are of high quality to ensure stable operation.
Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or ringing. Check the thermal pad temperature and ensure proper heat dissipation. Also, verify that the input voltage and output current are within the recommended specifications.
Yes, to minimize radiated emissions, keep the switching node (SW) as short as possible, and use a shielded inductor or a toroidal inductor to reduce radiation. Additionally, keep the input and output capacitors close to the device and use a solid ground plane to reduce noise.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCP020507P Overview

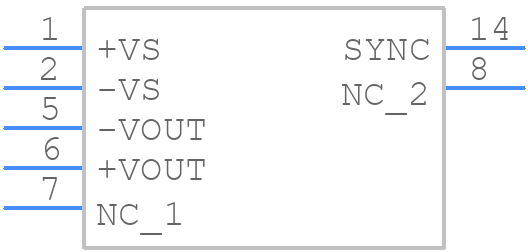

Use the download button to access the DCP020507P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP02,
or try a keyword search, such as Power Supply Modules
