A good PCB layout for the DCP021205P involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and EMI.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
The maximum current draw of the DCP021205P is 1.5mA. When designing the power supply, ensure that it can provide a stable voltage and sufficient current to meet the device's requirements, taking into account any voltage drops and power losses.
To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines. Also, consider the device's operating temperature range (-40°C to 125°C) and ensure that the system design takes this into account.
To protect the DCP021205P from ESD, use ESD-sensitive handling procedures during assembly, and implement ESD protection circuits in the system design, such as TVS diodes or ESD protection arrays.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCP021205P Overview

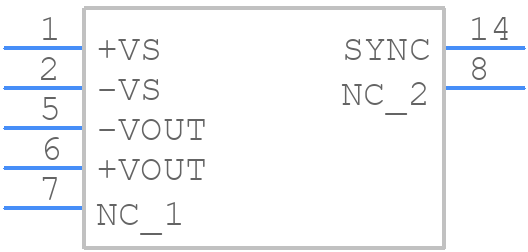

Use the download button to access the DCP021205P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP02,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
