A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure proper power-up and configuration, follow the recommended power-up sequence, and make sure to tie the EN pin high to enable the device. Also, configure the device according to the datasheet recommendations for the desired output voltage and current limit.
When selecting output capacitors, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. A higher capacitance value can help reduce output voltage ripple, but may increase the device's start-up time. Choose capacitors with low ESR to minimize energy losses.
To troubleshoot output voltage regulation issues, check the input voltage, output capacitor selection, and the feedback network. Ensure the input voltage is within the recommended range, and the output capacitor is suitable for the application. Verify the feedback network is properly configured and the feedback resistors are of the correct value.
To prevent overheating, ensure good airflow around the device, and use a heat sink if necessary. Keep the device's junction temperature (TJ) below the recommended maximum of 150°C. Monitor the device's thermal performance by measuring the junction temperature or using a thermal camera.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCP021212U/1K Overview

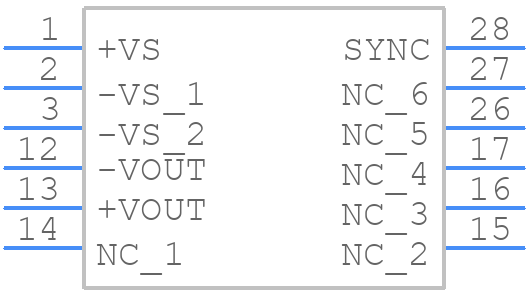

Use the download button to access the DCP021212U/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP02,
or try a keyword search, such as Power Supply Modules
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
