DCP4N053007ID4KSSD - WIMA

Description: 30 µF Film Capacitor 900V Polypropylene (PP), Metallized Radial - 4 Leads

Download DCP4N053007ID4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4N053007ID4KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

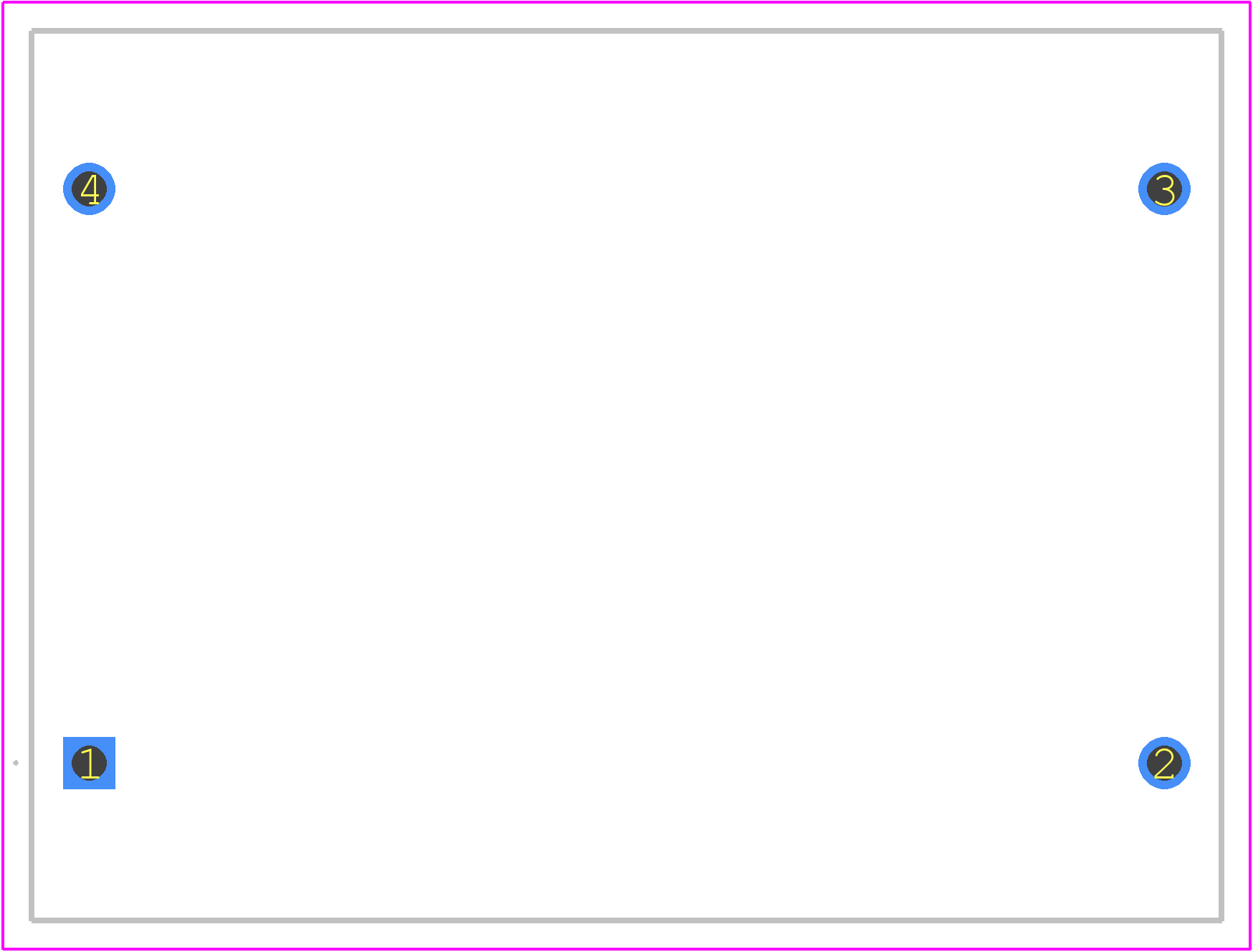

DCP4N053007ID4KSSD - WIMA PCB footprint - Other - Other - DCP4N053007ID4KSSD-2
click to zoom
3D Models
DCP4N053007ID4KSSD - WIMA - 3D model - Other - DCP4N053007ID4KSSD-2
click to zoom

DCP4N053007ID4KSSD Details

  • Manufacturer Part Number:

    DCP4N053007ID4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.46

  • Capacitance:

    30 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    46 mm

  • JESD-609 Code:

    e3

  • Length:

    41.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    900 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    31 mm

DCP4N053007ID4KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DCP4N053007ID4KSSD capacitor is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the DCP4N053007ID4KSSD capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The DCP4N053007ID4KSSD capacitor is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings at higher temperatures to ensure reliability.
  • The DCP4N053007ID4KSSD capacitor should be stored in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
  • Yes, the DCP4N053007ID4KSSD capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
