DCP4N055009FD4JSSD - WIMA

Description: Film Capacitors DC-LINK MKP 4 50.0 uF 900 VDC 35x50x57 PCM 52.5

Download DCP4N055009FD4JSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4N055009FD4JSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

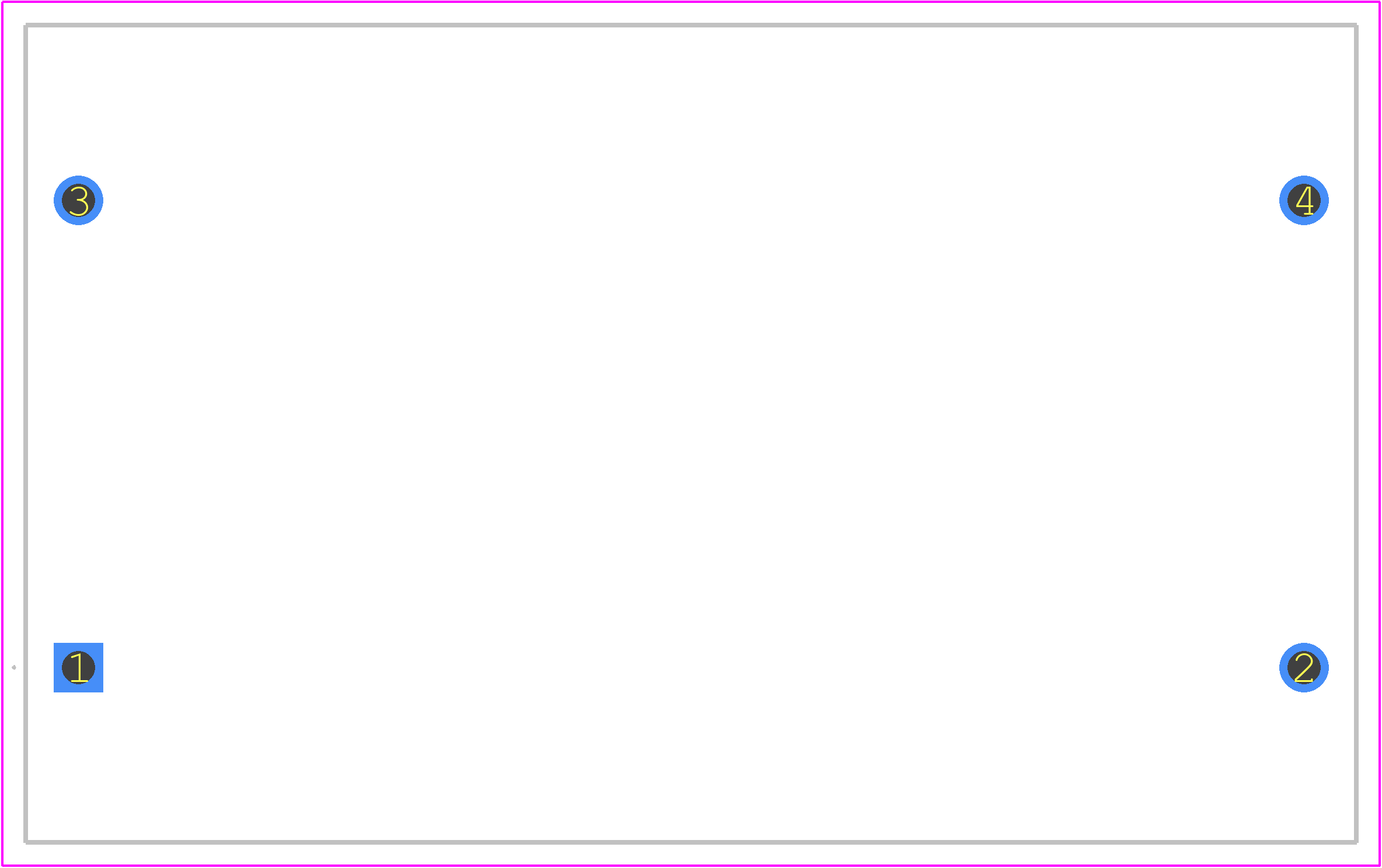

DCP4N055009FD4JSSD - WIMA PCB footprint - Other - Other - DCP4N055009FD4JSSD-1
click to zoom
3D Models
DCP4N055009FD4JSSD - WIMA - 3D model - Other - DCP4N055009FD4JSSD-1
click to zoom

DCP4N055009FD4JSSD Details

  • Manufacturer Part Number:

    DCP4N055009FD4JSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.46

  • Capacitance:

    50 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    50 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    900 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

DCP4N055009FD4JSSD Frequently Asked Questions (FAQs)

  • The recommended land pattern for DCP4N055009FD4JSSD can be found in the Wima application note 'Layout Recommendations for DC-Link Capacitors' or by contacting Wima's technical support.
  • The ESR of DCP4N055009FD4JSSD is already included in the impedance curve provided in the datasheet. You can use this curve to determine the capacitor's impedance at different frequencies and temperatures.
  • Yes, DCP4N055009FD4JSSD is designed to withstand high vibrations. However, it's recommended to follow Wima's guidelines for vibration testing and to consult with Wima's technical support for specific application requirements.
  • The derating of DCP4N055009FD4JSSD at high temperatures can be determined using the temperature derating curve provided in the datasheet. You can also consult with Wima's technical support for specific application requirements.
  • Yes, DCP4N055009FD4JSSD is compatible with lead-free soldering processes. However, it's recommended to follow Wima's guidelines for soldering and to consult with Wima's technical support for specific application requirements.
