Wima recommends a soldering temperature of 260°C (500°F) for 3-5 seconds, with a maximum temperature of 280°C (536°F) for 1-2 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
The DCP4N055009FD4KSSD is designed to handle high-frequency noise and ripple due to its low equivalent series resistance (ESR) and high resonance frequency. The capacitor's construction and materials help to minimize energy losses and ensure stable operation in high-frequency applications.
Yes, the DCP4N055009FD4KSSD is designed and manufactured to meet the requirements of high-reliability applications. Wima's quality control processes and materials ensure that the capacitor meets or exceeds industry standards for reliability and performance.
The DCP4N055009FD4KSSD is rated for operation up to 125°C (257°F), making it suitable for use in high-temperature applications. However, it's essential to consider the capacitor's derating curves and ensure that the component is operated within its specified temperature range to prevent premature failure.
Wima recommends derating the DCP4N055009FD4KSSD capacitor by 1.25% per 1°C (1.8°F) above 85°C (185°F) to ensure reliable operation. The recommended derating curves can be found in the datasheet or by consulting with Wima's application engineers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DCP4N055009FD4KSSD Overview

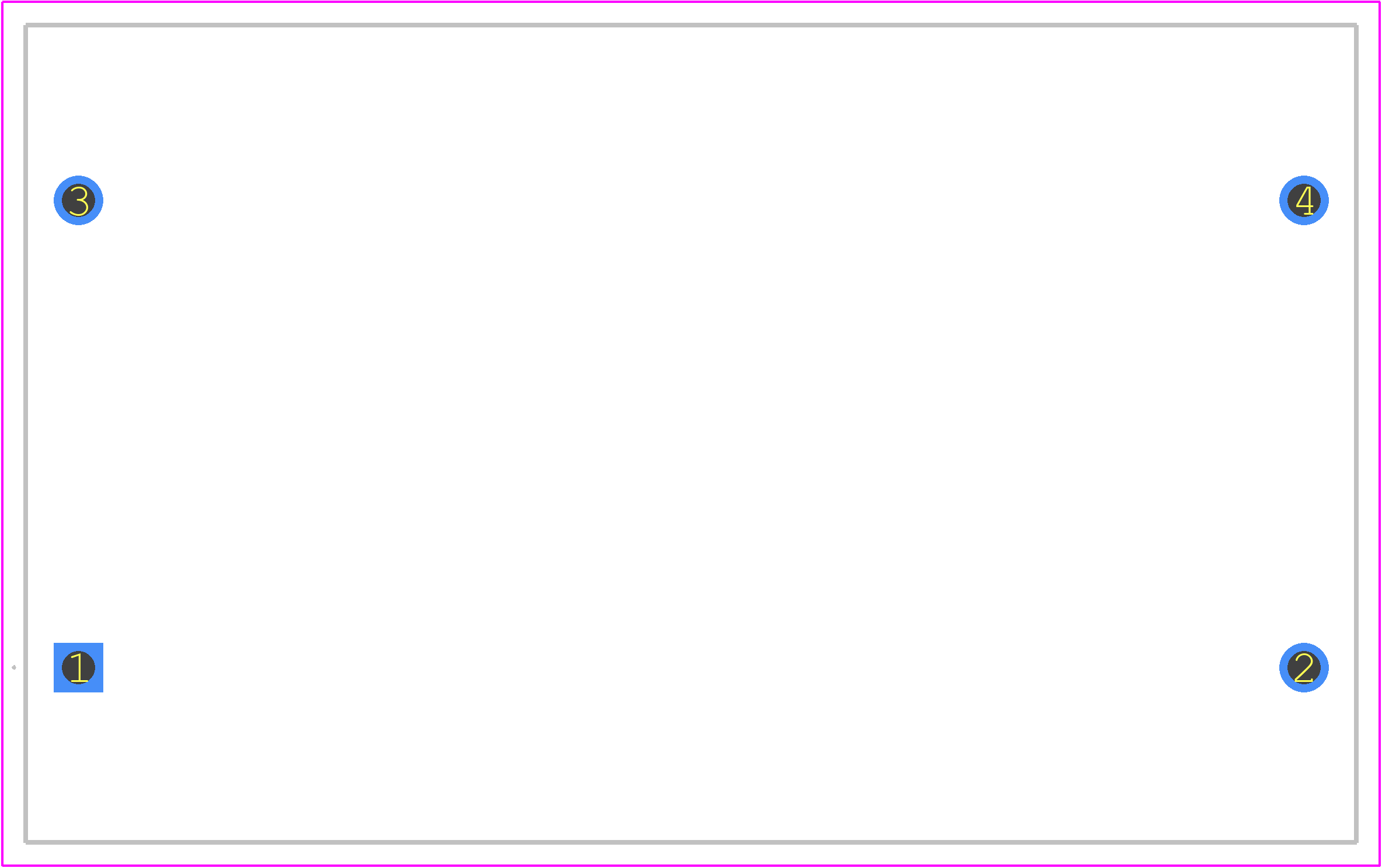

Use the download button to access the DCP4N055009FD4KSSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DCP4N,
or try a keyword search, such as Ceramic Capacitors
