DCP4R254009JD4KSSD - WIMA

Description: 40 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial - 4 Leads

Download DCP4R254009JD4KSSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DCP4R254009JD4KSSD - WIMA - PCB symbol
click to zoom
PCB Footprints

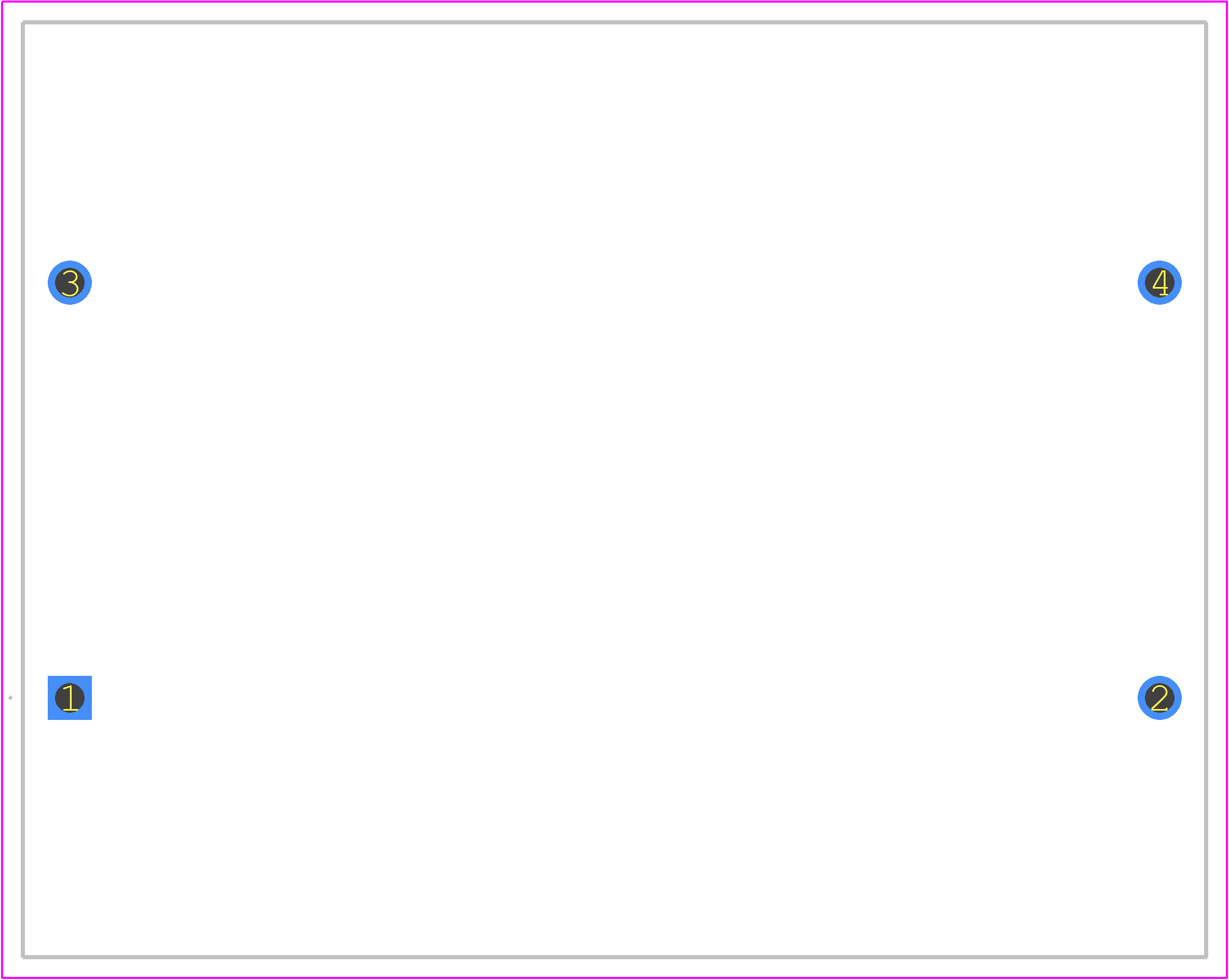

DCP4R254009JD4KSSD - WIMA PCB footprint - Other - Other - DCP4R254009JD4KSSD-1
click to zoom
3D Models
DCP4R254009JD4KSSD - WIMA - 3D model - Other - DCP4R254009JD4KSSD-1
click to zoom

DCP4R254009JD4KSSD Details

  • Manufacturer Part Number:

    DCP4R254009JD4KSSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00

  • Manufacturer:

    Wima

  • YTEOL:

    7.87

  • Capacitance:

    40 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    65 mm

  • JESD-609 Code:

    e3

  • Length:

    57 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    TRAY

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    1300 V

  • Reference Standard:

    AEC-Q200

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Shape:

    WIRE

  • Width:

    45 mm

DCP4R254009JD4KSSD Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DCP4R254009JD4KSSD is between 250°C to 260°C, with a maximum exposure time of 5 seconds.
  • Yes, the DCP4R254009JD4KSSD is designed for high-frequency applications up to 100 kHz, making it suitable for use in switching power supplies, DC-DC converters, and other high-frequency circuits.
  • The maximum ripple current rating for the DCP4R254009JD4KSSD is 3.5 A at 100 kHz, 20°C.
  • Yes, the DCP4R254009JD4KSSD is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The ESR of the DCP4R254009JD4KSSD is 0.015 ohms at 100 kHz, 20°C.
