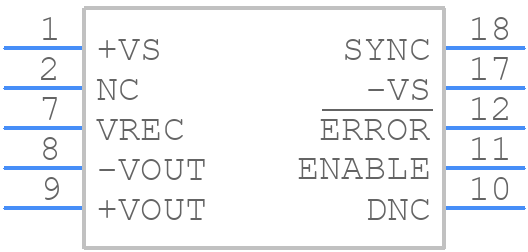

DCR010505P - Texas Instruments

DCR010505P Details

• Manufacturer Part Number:

  DCR010505P

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  18

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Control Mode:

  VOLTAGE-MODE

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  5 V

• JESD-30 Code:

  R-PDIP-T10

• JESD-609 Code:

  e4

• Length:

  22.86 mm

• Load Regulation-Max:

  2.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.2 A

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP10/18,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  THERMAL

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.002 Vrms

• Seated Height-Max:

  5.33 mm

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Width:

  7.62 mm
