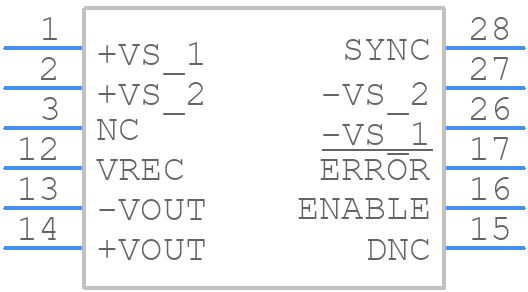

DCR012403U - Texas Instruments

DCR012403U Details

• Manufacturer Part Number:

  DCR012403U

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MODULE

• Pin Count:

  28/12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  UL

• Control Mode:

  VOLTAGE-MODE

• Input Voltage-Max:

  26.4 V

• Input Voltage-Min:

  21.6 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDSO-G12

• JESD-609 Code:

  e4

• Length:

  17.9 mm

• Load Regulation-Max:

  2.5%

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.3 A

• Output Voltage-Max:

  3.366 V

• Output Voltage-Min:

  3.234 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP28,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Protections:

  THERMAL

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.002 Vrms

• Seated Height-Max:

  2.65 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  1 W

• Trim/Adjustable Output:

  NO

• Width:

  7.5 mm
